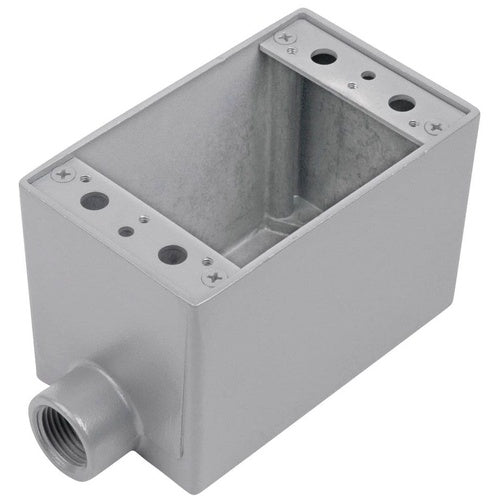

Red Dot AFS-1 1/2" 1-Gang Threaded FS Box

Overview

Red Dot AFS-1 1/2" 1-Gang Threaded FS Box

Product Specifications

• UPC: 04226930410
• Number Of Gangs: 1
• Number Of Hubs: 1
• Hub Location: (1) One End
• Hub Size: 1/2 Inch
• Material: Die-Cast Aluminum
• Mounting Hardware: Plate
• Approval: UL, CSA
• Additional Information: Includes Ground Screw
• Catalog Number: AFS-1
• Brand Name: T&B
• Model: AFS
• Type: FS
• Height: 4-9/16 Inch
• Width: 2-13/16 Inch
• Depth: 2-1/16 Inch
• Capacity: 21.6 Cubic Inch
• Catalog Description: 1/2 INCH SHALLOW 1 GANG DEVICE BOX, DIE CAST ALUMINUM, DEAD END, 1 HOLE, RAINTIGHT WHEN USED WITH APPROPRIATE COVER
• Category: Aluminum Fs&Fd Type Boxes & Covers
• Full Technical Description: FS Type; Die-Cast Aluminum Material; 2-13/16 Inch; 4-9/16 Inch; 2-1/16 Inch; 1/2 Inch Hub Size; 1 Hub(S); 1 Gang(S); UL, CSA Approval; 21.6 Cubic Inch Capacity; Plate Mounting Hardware; (1) One End Hub Location; Includes Ground Screw; AFS Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Red-Dot
• Sub Category: Weatherproof Device Box
• Unspsc: 39121315
• UPC 12 Digit: 042269304109
• SKU Name: rdot afs1
