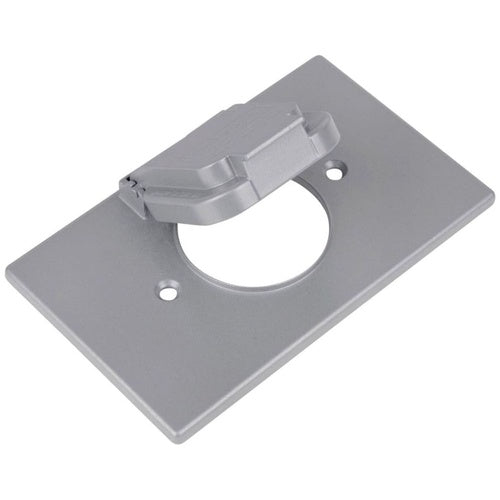

Red Dot CCS 1-Gang Weatherproof Receptacle Cover

Overview

Red Dot CCS 1-Gang Weatherproof Receptacle Cover

Product Specifications

• UPC: 04226935025
• Color: Silver
• Finish: Aluminum Lacquer
• Mounting: Device
• Mounting Position: Horizontal
• Approval: UL, CSA
• Additional Information: Includes Sealing Gasket, Screws; Application Dry-Tite Boxes and Covers Protect Wiring Devices, Switches, Electronic Components and Terminal Block in Dry, Damp and Wet Locations
• Catalog Number: CCS
• Brand Name: Red Dot
• Model: CCS
• Device Opening: (1) 1.485 Inch Diameter Single Receptacle
• Number Of Gangs: 1
• Lid Type: Single Lid with Gasket
• Size: 4-9/16 Inch Width x 2-13/16 Inch Height
• Material: Die-Cast Aluminum
• Catalog Description: SINGLE GANG WEATHERPROOF RECEPTACLE COVER, SILVER, ZINC ALLOY, 1 SINGLE RECEPTACLE COVER WITH 1.485 INCH DIAMETER OPENING HORIZONTAL, DEVICE MOUNT
• Category: Wall Plates & Covers
• Full Technical Description: Die-Cast Aluminum Material; 4-9/16 Inch Width X 2-13/16 Inch Height Size; Aluminum Lacquer Finish; Silver Color; 1 Gang(S); UL, CSA Approval; Device Mounting; Horizontal Mounting Position; Single Lid With Gasket Lid Type; (1) 1.485 Inch Diameter Single Receptacle Device Opening; Includes Sealing Gasket, Screws; Application Dry-Tite Boxes and Covers Protect Wiring Devices, Switches, Electronic Components and Terminal Block in Dry, Damp and Wet Locations; CCS Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Red-Dot
• Sub Category: Weatherproof Device Box Cover with Lid
• Unspsc: 39121304
• UPC 12 Digit: 042269350250
• SKU Name: rdot ccs

Resources

• Manufacturer Spec Sheet
