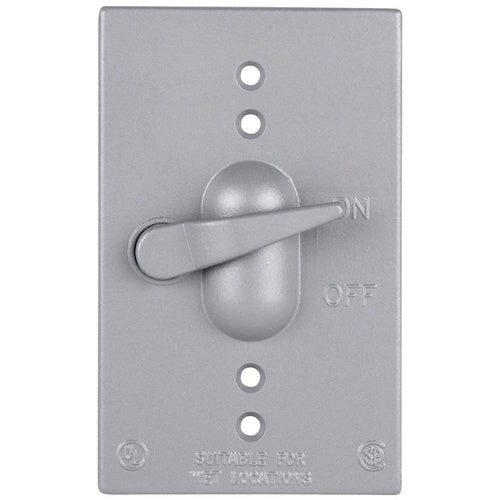

Red Dot CCT 1-Gang Weatherproof Switch Cover

Overview

Red Dot CCT 1-Gang Weatherproof Switch Cover

Product Specifications

• UPC: 04226935035
• Finish: Aluminum Lacquer
• Mounting: Device
• Mounting Position: Vertical
• Approval: UL
• Additional Information: Includes Gasket, Screw, Spacer; Application Wet/Damp Location
• Catalog Number: CCT
• Brand Name: Red Dot
• Device Type: (1) Switch
• Number Of Gangs: 1
• Operator Type: Lever
• Size: 2-13/16 Inch Width x 4-9/16 Inch Height
• Material: Die-Cast Aluminum
• Color: Silver
• Catalog Description: SINGLE GANG WEATHERPROOF RECEPTACLE COVER, SILVER, ZINC, DEVICE MOUNT SWITCH COVER ONLY, PACKED WITH SPACERS AND SCREWS
• Category: Wall Plates & Covers
• Full Technical Description: Die-Cast Aluminum Material; 2-13/16 Inch Width X 4-9/16 Inch Height Size; Aluminum Lacquer Finish; Silver Color; 1 Gang(S); UL Approval; Device Mounting; Lever Operator Type; (1) Switch Device Type; Vertical Mounting Position; Includes Gasket, Screw, Spacer; Application Wet/Damp Location
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Red-Dot
• Sub Category: Weatherproof Device Box Cover with Operator
• Unspsc: 39121304
• UPC 12 Digit: 042269350359
• SKU Name: rdot cct
