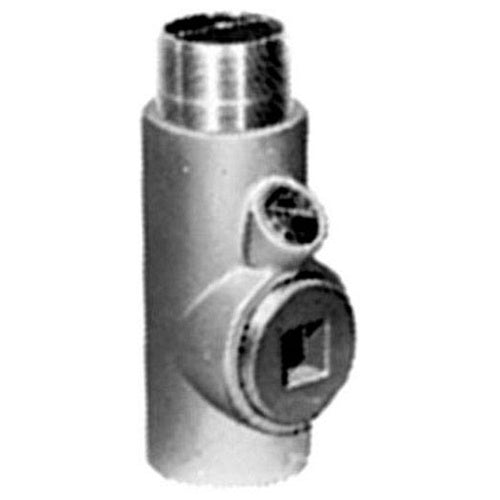

Appleton EYM300-AL 3" Aluminum Conduit Seal

Overview

Appleton EYM300-AL 3" Aluminum Conduit Seal

Product Specifications

• UPC: 78138160017
• Approval: UL
• Additional Information: REMOVABLE MALE NIPPLE
• Catalog Number: EYM300-AL
• Brand Name: UNILETS.
• Turning Radius: 3.13 INCH
• Trade Size: 3 INCH
• Connection Type: MALE, FEMALE
• Material: EPOXY POWDER COATED ALMAG 35 ALUMINUM
• Mounting Position: HORIZONTAL/VERTICAL
• Enclosure: CLASS I GROUP C D, CLASS II GROUP E F G, CLASS III
• Catalog Description: UNILETS EY SERIES 25 PCT FILL VERTICAL AND HORIZONTAL CONDUIT SEALING FITTING WITH REMOVABLE NIPPLE, SIZE: 3 IN, MATERIAL: ALMAG 35 ALUMINUM, FINISH: EPOXY POWDER COAT, CONNECTION: FEMALE THREADED X MALE THREADED, TURNING RADIUS: 3.13 I
• Category: Aluminum Sealing Bodies
• Full Technical Description: Epoxy Powder Coated Copper-Free Almag 35 Aluminum Material; Tapered Threaded Male/Female Connection Type; UL 886/1203, CSA C22.2 Approval; Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III Enclosure; 3 Inch Trade Size; Vertical/Horizontal Mounting Position; 3.13 Inch Turning Radius; UNILETS[R] Brand; Constructional Feature Explosionproof/Dust Ignitionproof/Rain Tight; Length 10.37 Inch; Used on Threaded Imc/Rigid Metal Conduit; Application Hazardous Location; Applicable Standard Nec/Cec; EYM Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Conduit Seal
• Unspsc: 39121311
• UPC 12 Digit: 781381600170
• SKU Name: app eym300al

Resources

• Manufacturer Spec Sheet
