Appleton EYSEF300 3" Eysef Sealg Unilet

Overview

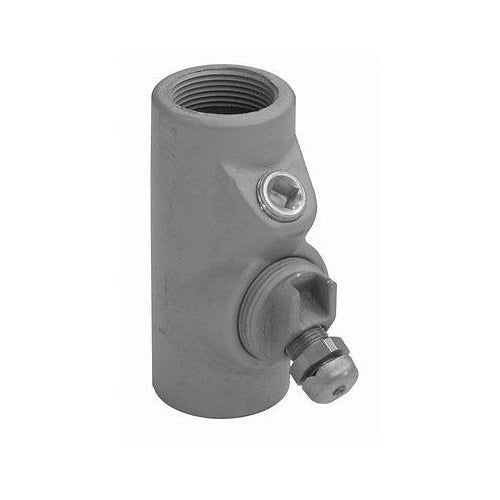

Appleton EYSEF300 3" Eysef Sealg Unilet

Product Specifications

• UPC: 78138169435
• Enclosure: Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III
• Approval: UL
• Additional Information: Application Sealing Vertical Conduit, Prevent Pressure Piling Within Conduit System, At the Boundary Where Conduit Leaves Classified Location
• Catalog Number: EYSEF300
• Brand Name: Unilet[R]
• Model: EYSEF
• Turning Radius: 3.31 Inch
• Trade Size: 3 Inch
• Connection Type: Female, Female
• Material: Malleable Iron
• Mounting Position: Horizontal/Vertical
• Catalog Description: UNILETS EY SERIES 40 PCT EXPANDED FILL VERTICAL AND HORIZONTAL CONDUIT SEALING FITTING, SIZE: 3 IN, MATERIAL: MALLEABLE IRON, FINISH: TRIPLE-COAT (ZINC ELECTROPLATE, CHROMATE AND EPOXY POWDER COAT), CONNECTION: FEMALE THREADED, TURNING RADIUS: 3.31 IN, LENGTH: 9.19 IN, WIDTH: 4-3/4 IN, STANDARD: UL 886 (1203), UL FILE NUMBER E10444, CSA C22.2 NO. 30, CSA 065181, UL LISTED FOR CLASS I, GROUPS B, C, D, CLASS II, GROUPS E, F, G, AND CLASS III, FOR USE WITH THREADED RIGID METAL CONDUIT AND IMC
• Category: Steel Sealing Bodies
• Full Technical Description: Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron Material; Tapered Threaded Female Connection Type; UL 886/1203, CSA C22.2 Approval; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III Enclosure; 3 Inch Trade Size; Vertical/Horizontal Mounting Position; 3.31 Inch Turning Radius; UNILETS[R] Brand; Constructional Feature Explosionproof/Dust Ignitionproof/Rain Tight; Length 9.19 Inch; Used on Threaded Imc/Rigid Metal Conduit; Application Hazardous Location; Applicable Standard Nec/Cec; EYSEF Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Conduit Seal
• Unspsc: 39121311
• UPC 12 Digit: 781381694353
• SKU Name: app eysef300
