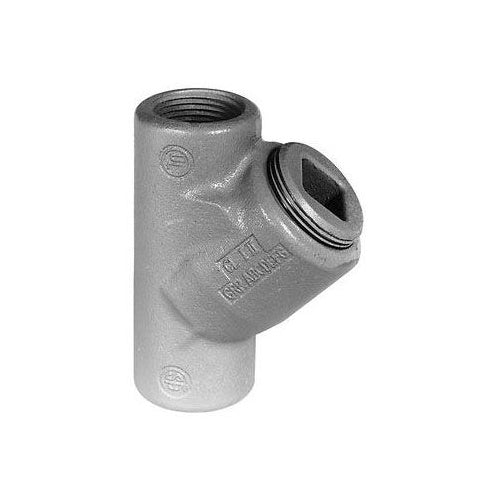

Appleton EYSF100-AL 1" Aluminum Explosion-Proof Seal Fitting

Overview

Appleton EYSF100-AL 1" Aluminum Explosion-Proof Seal Fitting

Product Specifications

• UPC: 78138161962
• Enclosure: Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III
• Approval: UL
• Additional Information: Application Sealing Vertical Conduit, Prevent Pressure Piling Within Conduit System, At the Boundary Where Conduit Leaves Classified Location
• Catalog Number: EYSF100-AL
• Brand Name: Unilet[R]
• Model: EYSF
• Turning Radius: 2.38 Inch
• Trade Size: 1 Inch
• Connection Type: Female, Female
• Material: Epoxy Powder Coated Almag 35 Aluminum
• Mounting Position: Vertical
• Catalog Description: UNILETS EYS SERIES 25 PCT FILL VERTICAL CONDUIT SEALING FITTING, SIZE: 1 IN, MATERIAL: ALMAG 35 ALUMINUM, FINISH: EPOXY POWDER COAT, CONNECTION: TAPERED FNPT, TURNING RADIUS: 2.38 IN, LENGTH: 1-3/4 IN, WIDTH: 1-3/4 IN, STANDARD: UL 886
• Category: Aluminum Sealing Bodies
• Full Technical Description: Epoxy Powder Coated Copper-Free Almag 35 Aluminum Material; Tapered Threaded Female Connection Type; UL 886/1203, CSA C22.2 Approval; Class I Div 1 and 2 Group A C D, Class II Div 1 and 2 Group E F G, Class III Enclosure; 1 Inch Trade Size; Vertical Mounting Position; 2.38 Inch Turning Radius; UNILETS[R] Brand; Constructional Feature Explosionproof/Dust Ignitionproof/Rain Tight; Length 4.25 Inch; Used on Threaded Imc/Rigid Metal Conduit; Application Hazardous Location; Applicable Standard Nec/Cec; EYS Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Conduit Seal
• Unspsc: 39121311
• UPC 12 Digit: 781381619622
• SKU Name: app eysf100al
