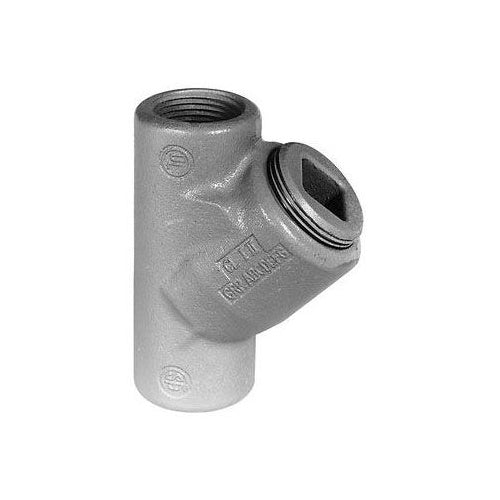

Appleton EYSF250 2-1/2" Malleable Conduit Seal

Overview

Appleton EYSF250 2-1/2" Malleable Conduit Seal

Product Specifications

• UPC: 78138133105
• Enclosure: Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III
• Approval: UL
• Additional Information: Application Sealing Vertical Conduit, Prevent Pressure Piling Within Conduit System, At the Boundary Where Conduit Leaves Classified Location
• Catalog Number: EYSF250
• Brand Name: Unilet[R]
• Model: EYSF
• Turning Radius: 4.75 Inch
• Trade Size: 2-1/2 Inch
• Connection Type: Female
• Material: Malleable Iron
• Mounting Position: Vertical
• Catalog Description: EXPLOSIONPROOF RIGID/IMC CONDUIT SEAL, TURNING RADIUS 4.75 INCH, TRADE SIZE 2-1/2 INCH, CONNECTION TYPE FEMALE, MATERIAL ZINC ELECTROPLATED CHROMATE EPOXY POWDER COATED MALLEABLE IRON, MOUNTING POSITION VERTICAL, ENCLOSURE CLASS I DIV 1 AND 2 GROUP A B C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, APPROVAL UL 886/E10444, CSA C22.2, SIZE 7.44 INCH L X 3.38 INCH W, CONSTRUCTIONAL FEATURE EXPLOSIONPROOF, DUST-IGNITIONPROOF, RAINTIGHT, USED ON THREADED RIGID/IMC METAL CONDUIT
• Category: Steel Sealing Bodies
• Full Technical Description: Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron Material; Tapered Threaded Female Connection Type; UL 886/1203, CSA C22.2 Approval; Class I Div 1 and 2 Group A C D, Class II Div 1 and 2 Group E F G, Class III Enclosure; 2-1/2 Inch Trade Size; Vertical Mounting Position; 4.75 Inch Turning Radius; UNILETS[R] Brand; Constructional Feature Explosionproof/Dust Ignitionproof/Rain Tight; Length 7.44 Inch; Used on Threaded Imc/Rigid Metal Conduit; Application Hazardous Location; Applicable Standard Nec/Cec; EYS Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Conduit Seal
• Unspsc: 39121311
• UPC 12 Digit: 781381331050
• SKU Name: app eysf250
