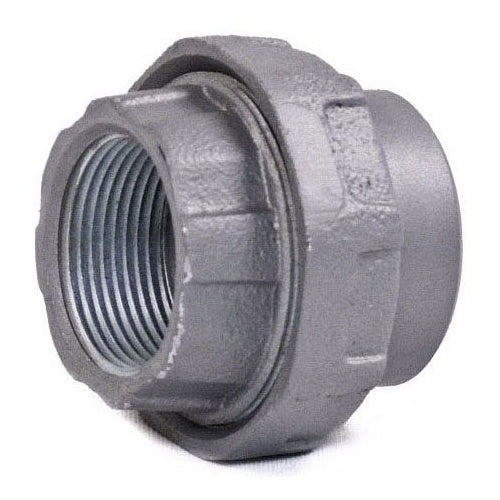

Appleton UNF250R-A 2-1/2" Aluminum Union

Overview

Appleton UNF250R-A 2-1/2" Aluminum Union

Product Specifications

• UPC: 78138169470
• Approval: UL 886
• Additional Information: Application Joining Conduit and Connecting Conduit to Enclosures. Facilitates Modifications, Permits Removal of Enclosures Without Turning or Removal of Conduit, for Expansion and Contraction of Conduit
• Catalog Number: UNF250R-A
• Brand Name: Unilet[R]
• Model: UNF
• Type: Female/Female
• Material: Epoxy Powder Coated Copper Free Aluminum
• Trade Size: 2-1/2 Inch
• Diameter: 4.88 Inch
• Length: 3.38 Inch
• Catalog Description: UNILETS UNF UNION, TRADE SIZE: 2-1/2 IN, OUTSIDE DIAMETER: 4.88 IN, LENGTH: 3.38 IN, FLEXIBILITY: RIGID AND IMC, MATERIAL: COPPERFREE (4/10 OF 1 PCT MAXIMUM) ALUMINUM, CONNECTION: FEMALE THREADED, FINISH: NATURAL, STANDARD: UL 886 (1203
• Category: Rigid Conduit Fittings - Aluminum
• Full Technical Description: Female/Female Type; Natural Epoxy Powder Coated Copper-Free Aluminum Material; 3.38 Inch; UL 886/1203, CSA C22.2 Approval; 4.88 Inch Diameter; 2-1/2 Inch Trade Size; UNILETS[R] Brand; Constructional Feature Explosionproof/Dust Ignitionproof; Enclosure Rating Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III; Used on Threaded Imc/Rigid Metal Conduit; Application Hazardous Location; Applicable Standard Nec/Cec; UNF Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Standard Conduit Union
• Unspsc: 39131707
• UPC 12 Digit: 781381694704
• SKU Name: app unf250ra

Resources

• Manufacturer Spec Sheet
