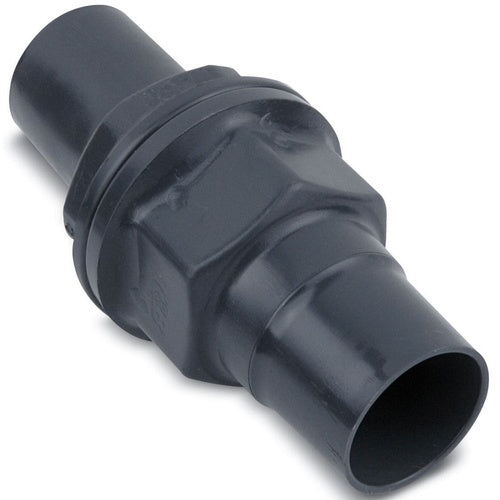

Ocal UNF505-G PVC Coated UNF Female Union 1-1/2" Gray

Overview

Ocal UNF505-G PVC Coated UNF Female Union 1-1/2" Gray

Product Specifications

• UPC: 70450841318
• Approval: UL, CSA
• Additional Information: Color Dark Gray
• Catalog Number: UNF505-G
• Brand Name: Ocal
• Model: UNF
• Type: Female/Female
• Material: PVC Coated Steel Electrogalvanized Steel
• Trade Size: 1-1/2 Inch
• Diameter: 3-1/16 Inch
• Length: 2-3/4 Inch
• Catalog Description: PVC COATED EXPLOSION AND DUST-IGNITION PROOF UNF FEMALE UNION, PIPE SIZE 1-1/2 INCH/41 METRIC, 3 PIECE, FOR HAZARDOUS AND NON-HAZARDOUS LOCATIONS, OVERALL LENGTH 2.75 INCH/69.85 MILLIMETERS, OVERALL DIAMETER 3.06 INCH/77.72 MILLIMETERS, ELECTROGALVANIZED STEEL, GRAY
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Female/Female Type; PVC Coated Steel Electrogalvanized Steel Material; 2-3/4 Inch; UL, CSA Approval; 3-1/16 Inch Diameter; 1-1/2 Inch Trade Size; OCAL-BLUE[R] Brand; Color Dark Gray; UNF Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Ocal
• Sub Category: Explosionproof Standard Conduit Union
• Unspsc: 39131707
• UPC 12 Digit: 704508413187
• SKU Name: ocal unf505g

Resources

• Manufacturer Spec Sheet
