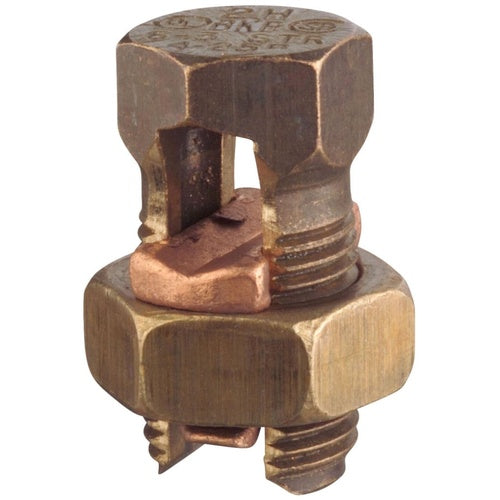

Blackburn 1000M 1000 Copper Split Bolt

Overview

Blackburn 1000M 1000 Copper Split Bolt

Product Specifications

• UPC: 78378620021
• Maximum Tap Conductor Size: 1000 KCMIL
• Material: Corrosion Resistant High Strength Bronze Alloy Bolt/Nut, Copper Alloy Pressure Bar
• Approval: UL, CSA
• Additional Information: Overall Dimension 2-17/32 Inch L x 4-1/32 Inch H
• Catalog Number: 1000M
• Model: H
• Type: Split Bolt
• Installation: Split Bolt
• Conductor Material: Copper
• Minimum Run Conductor Size: 800 KCMIL
• Maximum Run Conductor Size: 1000 KCMIL
• Minimum Tap Conductor Size: 4/0 AWG Stranded, 800 KCMIL
• Catalog Description: TYPE H - HIGH STRENGTH SPLIT-BOLT CONNECTOR, CONDUCTOR RANGE FOR EQUAL MAIN AND TAP 1000 KCMIL-800 KCMIL, CONDUCTOR RANGE FOR MIN TAP WITH ONE MAX MAIN 4/0 STR
• Category: Large Terminals & Connectors
• Full Technical Description: Split Bolt Type; Corrosion Resistant High Strength Bronze Alloy Bolt/Nut, Copper Alloy Pressure Bar Material; 800 kcmil min. Run Conductor Size; 1000 kcmil Max. Run Conductor Size; 4/0 AWG Stranded, 800 kcmil min. Tap Conductor Size; 1000 kcmil Max. Tap Conductor Size; Split Bolt Installation; Copper Conductor Material; UL, CSA Approval; Overall Dimension 2-17/32 Inch L X 4-1/32 Inch H; H Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Blackburn
• Sub Category: Mechanical Single Cable Tap
• Unspsc: 39121408
• UPC 12 Digit: 783786200214
• SKU Name: 1000m blkbrn

Resources

• Manufacturer Spec Sheet
