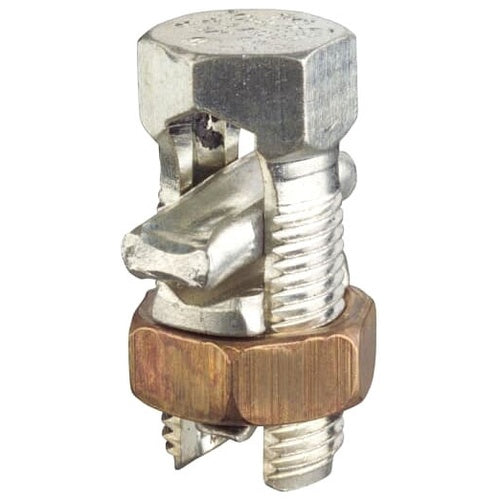

Blackburn 1HPS Split Bolt (Cps1)Hpw

Overview

Blackburn 1HPS Split Bolt (Cps1)Hpw

Product Specifications

• UPC: 78378620045
• Minimum Tap Conductor Size: 8 AWG Solid, 8 AWG (ACSR)
• Maximum Tap Conductor Size: 1 AWG Stranded, 2 AWG (ACSR)
• Material: Electrolytic Tin Plated Copper Spacer, Tin Plated Copper Alloy Bolt/Pressure Bar
• Approval: UL, CSA
• Additional Information: Overall Dimension 7/8 Inch Length x 1-5/8 Inch Height
• Catalog Number: 1HPS
• Brand Name: Blackburn
• Model: HPS
• Type: Split Bolt
• Installation: Hex Head Split Bolt with Spacer
• Conductor Material: Copper/Aluminum/ACSR
• Minimum Run Conductor Size: 8 AWG Solid, 8 AWG (ACSR)
• Maximum Run Conductor Size: 1 AWG Stranded, 2 AWG (ACSR)
• Catalog Description: TYPE HPS - SPLIT-BOLT CONNECTOR WITH SPACER, CONDUCTOR RANGE FOR EQUAL MAIN AND TAP ACSR 2-8, CONDUCTOR RANGE FOR EQUAL MAIN AND TAP 1 STR-8 SOL, MIN TAP WITH ONE MAX MAIN 8 SOL, TIN PLATED
• Category: Small Terminals & Connectors
• Full Technical Description: Split Bolt Type; Electrolytic Tin Plated Copper Spacer, Tin Plated Copper Alloy Bolt/Pressure Bar Material; 8 AWG Solid, 8 AWG (ACSR) min. Run Conductor Size; 1 AWG Stranded, 2 AWG (ACSR) Max. Run Conductor Size; 8 AWG Solid, 8 AWG (ACSR) min. Tap Conductor Size; 1 AWG Stranded, 2 AWG (ACSR) Max. Tap Conductor Size; Hex Head Split Bolt With Spacer Installation; Copper/Aluminum/Acsr Conductor Material; UL, CSA Approval; Overall Dimension 7/8 Inch Length X 1-5/8 Inch Height; HPS Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Blackburn
• Sub Category: Mechanical Single Cable Tap
• Unspsc: 39121408
• UPC 12 Digit: 783786200450
• SKU Name: 1hps blkbrn

Resources

• Manufacturer Spec Sheet
