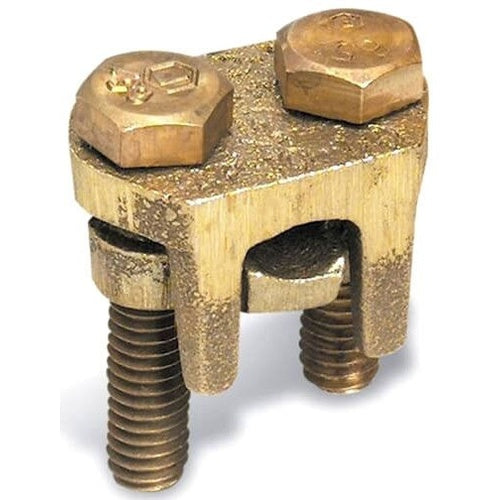

Blackburn 2B350X 350 Copper 2- Bolt Connector

Overview

Blackburn 2B350X 350 Copper 2- Bolt Connector

Product Specifications

• UPC: 78378640011
• Maximum Tap Conductor Size: 350 KCMIL
• Material: Corrosion Resistant Electrolytic Tin Plated Copper Alloy Bolt/Pressure Bar
• Approval: UL, CSA
• Additional Information: Overall Dimension 2-1/8 Inch Length
• Catalog Number: 2B350X
• Model: 2BX
• Type: Split Bolt
• Installation: Hex Head Two Bolt
• Conductor Material: Copper
• Minimum Run Conductor Size: 4/0 AWG Stranded
• Maximum Run Conductor Size: 350 KCMIL
• Minimum Tap Conductor Size: 4 AWG Stranded
• Catalog Description: COPPER TYPE 2BX - ONE PIECE TWO-BOLT CONNECTOR WITHOUT SPACER FOR WIRE RANGE MAIN: 4/0 STR. - 350 KCMIL TAP: 4 SOL. - 350 KCMIL , BOLT SIZE 3/4
• Category: Large Terminals & Connectors
• Full Technical Description: Split Bolt Type; Corrosion Resistant Electrolytic Tin Plated Copper Alloy Bolt/Pressure Bar Material; 4/0 AWG Stranded min. Run Conductor Size; 350 kcmil Max. Run Conductor Size; 4 AWG Stranded min. Tap Conductor Size; 350 kcmil Max. Tap Conductor Size; Hex Head Two Bolt Installation; Copper Conductor Material; UL, CSA Approval; Overall Dimension 2-1/8 Inch Length; 2BX Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Blackburn
• Sub Category: Mechanical Single Cable Tap
• Unspsc: 39121408
• UPC 12 Digit: 783786400119
• SKU Name: 2b350x blackburn
