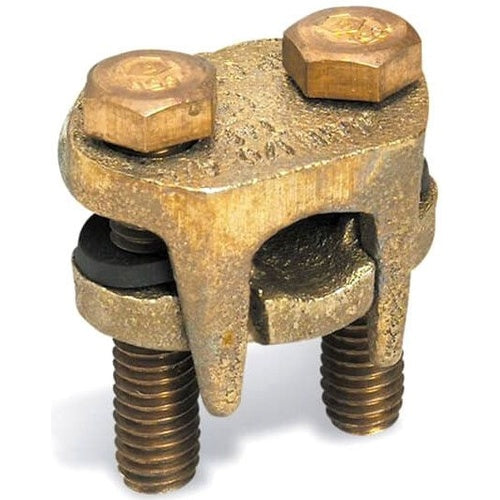

Blackburn 2B40 4/0 Copper 2- Bolt Connector

Overview

Blackburn 2B40 4/0 Copper 2- Bolt Connector

Product Specifications

• UPC: 78378640003
• Material: High Strength Copper Alloy Bolt/Casting, Neoprene Washer
• Approval: UL, CSA
• Additional Information: Overall Dimension 1-23/32 Inch L; Bolt Size 9/16 Inch
• Catalog Number: 2B40
• Model: 2B
• Installation: Two Bolt without Spacer
• Conductor Material: Copper
• Minimum Run Conductor Size: 1/0 AWG Stranded
• Maximum Run Conductor Size: 4/0 AWG Stranded
• Minimum Tap Conductor Size: 6 AWG Solid
• Maximum Tap Conductor Size: 4/0 AWG Stranded
• Catalog Description: COPPER TYPE 2B - TWO-BOLT CONNECTOR WITHOUT SPACER FOR WIRE RANGE MAIN: 1/0 - 4/0 STR. TAP: 6 SOL. - 4/0 STR. , BOLT SIZE 9/16
• Category: Large Terminals & Connectors
• Full Technical Description: High Strength Copper Alloy Bolt/Casting, Neoprene Washer Material; 1/0 AWG Stranded min. Run Conductor Size; 4/0 AWG Stranded Max. Run Conductor Size; 6 AWG Solid min. Tap Conductor Size; 4/0 AWG Stranded Max. Tap Conductor Size; Two Bolt Without Spacer Installation; Copper Conductor Material; UL, CSA Approval; Overall Dimension 1-23/32 Inch L; Bolt Size 9/16 Inch; 2B Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Blackburn
• Sub Category: Mechanical Single Cable Tap
• Unspsc: 39121408
• UPC 12 Digit: 783786400034
• SKU Name: 2b40 blkbrn
