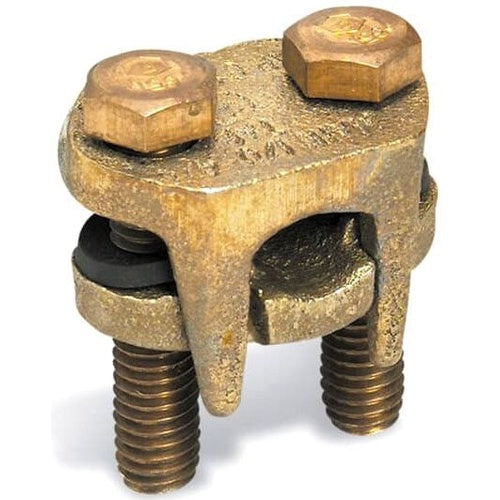

Blackburn 2B500 500 Copper 2- Bolt Connector

Overview

Blackburn 2B500 500 Copper 2- Bolt Connector

Product Specifications

• UPC: 78378640005
• Material: High Strength Copper Alloy (Bolt/Casting), Neoprene (Washer)
• Approval: UL 486A, CSA
• Catalog Number: 2B500
• Model: 2B
• Installation: 2-Bolt without Spacer, Washer
• Conductor Material: Copper
• Minimum Run Conductor Size: 350 KCMIL
• Maximum Run Conductor Size: 500 KCMIL
• Minimum Tap Conductor Size: 4 AWG Solid
• Maximum Tap Conductor Size: 500 KCMIL
• Catalog Description: COPPER TYPE 2B - TWO-BOLT CONNECTOR WITHOUT SPACER FOR WIRE RANGE MAIN: 300 - 500 KCMIL TAP: 4 SOL. - 500 KCMIL, BOLT SIZE 1/2
• Category: Large Terminals & Connectors
• Full Technical Description: High Strength Copper Alloy Bolt/Casting, Neoprene Washer Material; 350 kcmil min. Run Conductor Size; 500 kcmil Max. Run Conductor Size; 4 AWG Solid min. Tap Conductor Size; 500 kcmil Max. Tap Conductor Size; Two Bolt Without Spacer Installation; Copper Conductor Material; UL, CSA Approval; Overall Dimension 2-1/4 Inch L; Bolt Size 3/4 Inch; 2B Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Blackburn
• Sub Category: Mechanical Single Cable Tap
• Unspsc: 39121408
• UPC 12 Digit: 783786400058
• SKU Name: 2b500 blkbrn
