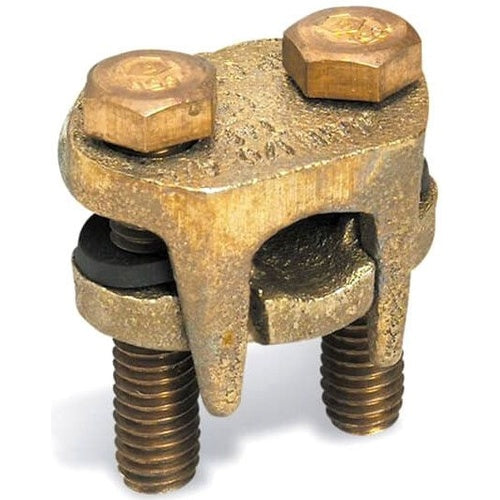

Blackburn 2B800 800Kcmil Connector

Overview

Blackburn 2B800 800Kcmil Connector

Product Specifications

• UPC: 78378640006
• Material: HIGH STRENGTH COPPER ALLOY BOLT/CASTING, NEOPRENE WASHER
• Approval: UL, CSA
• Additional Information: OVERALL DIMENSION 2-1/2 INCH L; BOLT SIZE 3/4 INCH
• Catalog Number: 2B800
• Model: 2B
• Installation: TWO BOLT WITHOUT SPACER
• Conductor Material: COPPER
• Minimum Run Conductor Size: 600 KCMIL
• Maximum Run Conductor Size: 800 KCMIL
• Minimum Tap Conductor Size: 2 AWG SOLID
• Maximum Tap Conductor Size: 800 KCMIL
• Catalog Description: COPPER TYPE 2B - TWO-BOLT CONNECTOR WITHOUT SPACER FOR WIRE RANGE MAIN: 600 - 800 KCMIL TAP: 2 SOL. - 800 KCMIL , BOLT SIZE 3/4
• Category: Large Terminals & Connectors
• Full Technical Description: High Strength Copper Alloy Bolt/Casting, Neoprene Washer Material; 600 kcmil min. Run Conductor Size; 800 kcmil Max. Run Conductor Size; 2 AWG Solid min. Tap Conductor Size; 800 kcmil Max. Tap Conductor Size; Two Bolt Without Spacer Installation; Copper Conductor Material; UL, CSA Approval; Overall Dimension 2-1/2 Inch L; Bolt Size 3/4 Inch; 2B Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Blackburn
• Sub Category: Mechanical Single Cable Tap
• Unspsc: 39121408
• UPC 12 Digit: 783786400065
• SKU Name: 2b800 blkbrn
