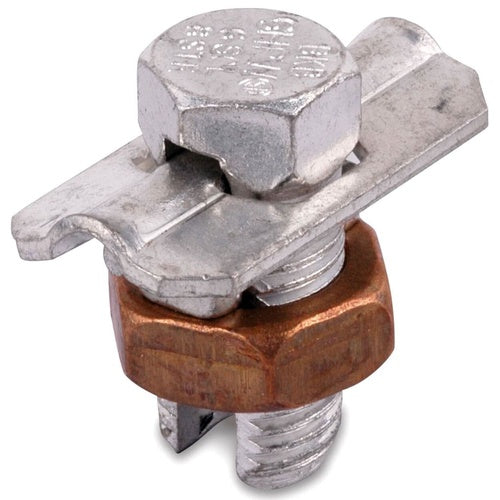

Blackburn 40HPW 4/0 Aluminum/Copper Split Bolt

Overview

Blackburn 40HPW 4/0 Aluminum/Copper Split Bolt

Product Specifications

• UPC: 78378620039
• Material: Electrolytic Tin Plated Copper (Spacer/Washer), Tin Plated Copper Alloy (Bolt/Pressure Bar)
• Approval: UL
• Catalog Number: 40HPW
• Model: HPW
• Installation: Split Bolt with Spacer, Washer
• Conductor Material: Copper/Aluminum/ACSR
• Minimum Run Conductor Size: 4 AWG Solid (Copper/Aluminum), 4 AWG (ACSR)
• Maximum Run Conductor Size: 4/0 AWG Stranded (Copper/Aluminum), 4/0 AWG (ACSR)
• Minimum Tap Conductor Size: 4 AWG Solid (Copper/Aluminum), 4 AWG (ACSR)
• Maximum Tap Conductor Size: 4/0 AWG Stranded (Copper/Aluminum), 4/0 AWG (ACSR)
• Catalog Description: TYPE HPW PLATED SPLIT-BOLT CONNECTOR WITH SPACER AND WASHER MADE OF COPPER ALLOY FOR USE ON COPPER, ALUMINUM, ACSR CONDUCTORS. CONDUCTOR RANGE FOR EQUAL MAIN AND TAP 4/0 STR.-4 SOL.
• Category: Large Terminals & Connectors
• Full Technical Description: Split Bolt Type; Electrolytic Tin Plated Copper Spacer/Washer, High Strength Tin Plated Copper Alloy Bolt/Nut/Pressure Bar Material; 4 AWG (ACSR), 4 AWG Solid (Copper/Aluminum), 4/0 AWG Stranded (Copper/Aluminum) min. Run Conductor Size; 4 AWG Solid (Copper/Aluminum), 4/0 AWG (ACSR), 4/0 AWG Stranded (Copper/Aluminum) Max. Run Conductor Size; 4 AWG (ACSR), 4 AWG Solid (Copper/Aluminum), 4/0 AWG Stranded (Copper/Aluminum) min. Tap Conductor Size; 4 AWG Solid (Copper/Aluminum), 4/0 AWG (ACSR), 4/0 AWG Stranded (Copper/Aluminum) Max. Tap Conductor Size; Split Bolt With Spacer, Washer Installation; Copper/Aluminum/Acsr Conductor Material; UL, CSA Approval; Overall Dimension 1-5/16 Inch L X 2-15/32 Inch H; HPW Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Blackburn
• Sub Category: Mechanical Single Cable Tap
• Unspsc: 39121408
• UPC 12 Digit: 783786200399
• SKU Name: 40hpw blackburn
