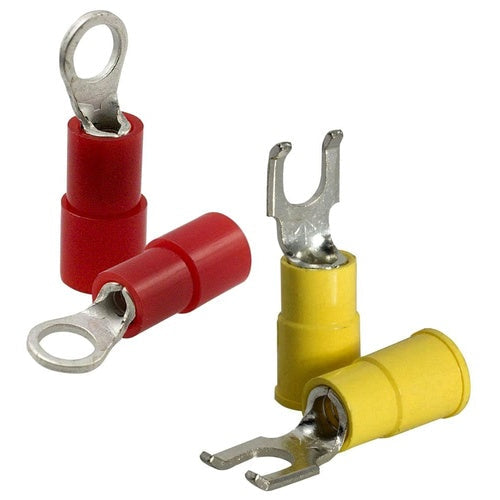

ILSCO 44512-B10 16-14 Fork Terminal Bag

Overview

Ilsco 44512-B10 16-14 Fork Terminal Bag

Product Specifications

• UPC: 78366944325
• Temperature Rating: 90 Deg C
• Standard Package: 10 per Bag
• Approval: UL, CSA
• Additional Information: ROHS Compatible; Material Electro-Tin Plated High Strength Copper Alloy; Size 0.88 Inch L x 0.31 Inch W; Voltage Rating 600 V; Wire Insulation Diameter 0.175 Inch
• Catalog Number: 44512-B10
• Model: ILSCONS
• Type: Standard
• Minimum Conductor Size: 16 AWG
• Maximum Conductor Size: 14 AWG
• Color: Blue
• Insulation Type: Vinyl Insulated
• Stud Size: #8
• Catalog Description: ILSCON FORK TERMINAL, CONDUCTOR RANGE 14-16, #8 BOLT SIZE, VINYL INSULATED, BLUE COLOR CODE, PACK OF 10
• Category: Small Terminals & Connectors
• Full Technical Description: Standard Type; Blue Color; 16 AWG min. Conductor Size; 14 AWG Max. Conductor Size; UL, CSA Approval; 90 Deg C Temperature Rating; 10 Per Bag Standard Package; #8 Stud Size; Vinyl Insulated Insulation Type; RoHS Compatible; Material Electro-Tin Plated High Strength Copper Alloy; Size 0.88 Inch L X 0.31 Inch W; Voltage Rating 600 V; Wire Insulation Diameter 0.175 Inch; ILSCONS Model
• Made In Usa: Yes
• Manufacturer: ILSCO Corp.
• Manufacturer Brand: ILSCO Corp.
• Proposition 65 Warning (Ca): WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
• Sub Category: Fork Lug
• Unspsc: 39121405
• UPC 12 Digit: 783669443257
• SKU Name: 44512b10 ilsco
