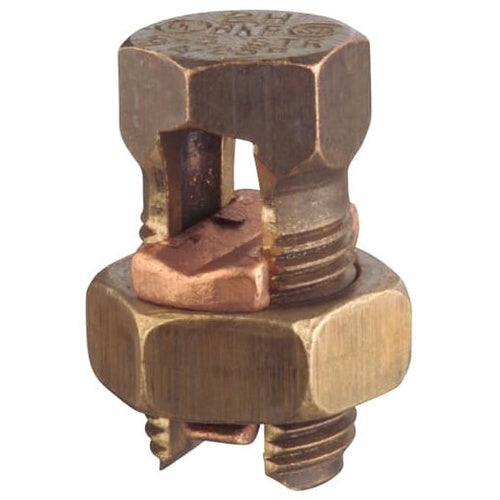

Blackburn 6H 6-Solid Copper Split Bolt

Overview

Blackburn 6H 6-Solid Copper Split Bolt

Product Specifications

• UPC: 78378620004
• Minimum Tap Conductor Size: 14 AWG Solid
• Maximum Tap Conductor Size: 6 AWG Solid
• Material: Corrosion Resistant High Strength Bronze Alloy Bolt/Nut, Copper Pressure Bar
• Approval: UL, CSA
• Additional Information: Overall Dimension 21/32 Inch Length x 31/32 Inch Height
• Catalog Number: 6H
• Brand Name: Blackburn
• Model: H
• Type: Split Bolt
• Installation: Hex Head Split Bolt
• Conductor Material: Copper
• Minimum Run Conductor Size: 8 AWG Solid
• Maximum Run Conductor Size: 6 AWG Solid
• Catalog Description: TYPE H - HIGH STRENGTH SPLIT-BOLT CONNECTOR, CONDUCTOR RANGE FOR EQUAL MAIN AND TAP 6 SOL-8 SOL, CONDUCTOR RANGE FOR MIN TAP WITH ONE MAX MAIN 14 SOL
• Category: Large Terminals & Connectors
• Full Technical Description: Split-Bolt Type; Corrosion Resistant High Strength Bronze Alloy (Bolt/Nut), Copper (Pressure Bar) Material; 8 AWG Solid min. Run Conductor Size; 6 AWG Solid Max. Run Conductor Size; 14 AWG Solid min. Tap Conductor Size; 8 AWG Solid Max. Tap Conductor Size; Hex Head Split Bolt Installation; Copper Conductor Material; UL, CSA Approval; Overall Dimension 21/32 Inch Length X 31/32 Inch Height
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Blackburn
• Sub Category: Mechanical Single Cable Tap
• Unspsc: 39121408
• UPC 12 Digit: 783786200047
• SKU Name: 6h blackburn
