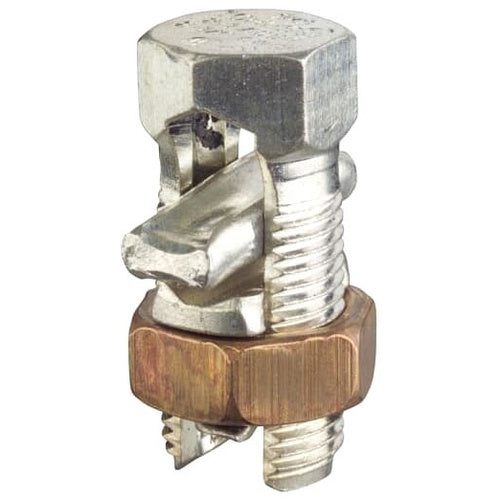

Blackburn 750HPS 750 Aluminum/Copper Split Bolt

Overview

Blackburn 750HPS 750 Aluminum/Copper Split Bolt

Product Specifications

• UPC: 78378620051
• Maximum Tap Conductor Size: 4/0 AWG Stranded (Copper/Aluminum), 666.6 KCMIL (ACSR), 750 KCMIL (Copper/Aluminum)
• Material: Electrolytic Tin Plated Copper Spacer, Tin Plated Copper Alloy Bolt/Pressure Bar
• Approval: UL, CSA
• Additional Information: Overall Dimension 2-1/4 Inch L x 3-21/32 Inch H
• Catalog Number: 750HPS
• Model: HPS
• Type: Split Bolt
• Installation: Split Bolt with Spacer
• Conductor Material: Copper/Aluminum/ACSR
• Minimum Run Conductor Size: 4/0 AWG (ACSR), 4/0 AWG Stranded (Copper/Aluminum), 750 KCMIL (Copper/Aluminum)
• Maximum Run Conductor Size: 4/0 AWG Stranded (Copper/Aluminum), 666.6 KCMIL (ACSR), 750 KCMIL (Copper/Aluminum)
• Minimum Tap Conductor Size: 2/0 AWG Stranded (Copper/Aluminum), 4/0 AWG (ACSR), 4/0 AWG Stranded (Copper/Aluminum), 750 KCMIL (Copper/Aluminum)
• Catalog Description: TYPE HPS - SPLIT-BOLT CONNECTOR WITH SPACER, CONDUCTOR RANGE FOR EQUAL MAIN AND TAP ACSR 666.6-4/0, CONDUCTOR RANGE FOR EQUAL MAIN AND TAP 750 KCMIL-4/0 STR, MIN TAP WITH ONE MAX MAIN 2/0 STR, TIN PLATED
• Category: Large Terminals & Connectors
• Full Technical Description: Split Bolt Type; Electrolytic Tin Plated Copper Spacer, Tin Plated Copper Alloy Bolt/Pressure Bar Material; 4/0 AWG (ACSR), 4/0 AWG Stranded (Copper/Aluminum), 750 kcmil (Copper/Aluminum) min. Run Conductor Size; 4/0 AWG Stranded (Copper/Aluminum), 666.6 kcmil (ACSR), 750 kcmil (Copper/Aluminum) Max. Run Conductor Size; 2/0 AWG Stranded (Copper/Aluminum), 4/0 AWG (ACSR), 4/0 AWG Stranded (Copper/Aluminum), 750 kcmil (Copper/Aluminum) min. Tap Conductor Size; 4/0 AWG Stranded (Copper/Aluminum), 666.6 kcmil (ACSR), 750 kcmil (Copper/Aluminum) Max. Tap Conductor Size; Split Bolt With Spacer Installation; Copper/Aluminum/Acsr Conductor Material; UL, CSA Approval; Overall Dimension 2-1/4 Inch L X 3-21/32 Inch H; HPS Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Blackburn
• Sub Category: Mechanical Single Cable Tap
• Unspsc: 39121408
• UPC 12 Digit: 783786200511
• SKU Name: 750hps blkbrn
