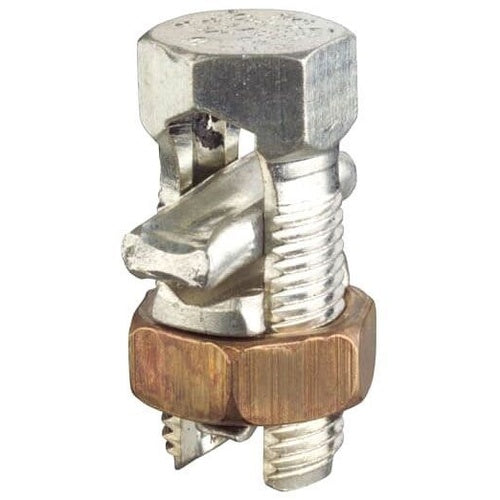

Blackburn 8HPS 8Str Aluminum/Copper Split Bolt

Overview

Blackburn 8HPS 8Str Aluminum/Copper Split Bolt

Product Specifications

• UPC: 78378620041
• Maximum Tap Conductor Size: 12 AWG Solid, 8 AWG Stranded
• Material: Electrolytic Tin Plated Copper Spacer, Tin Plated Copper Alloy Bolt/Pressure Bar
• Approval: UL, CSA
• Additional Information: Overall Dimension 1/2 Inch L x 29/32 Inch H
• Catalog Number: 8HPS
• Model: HPS
• Type: Split Bolt
• Installation: Split Bolt with Spacer
• Conductor Material: Copper/Aluminum/ACSR
• Minimum Run Conductor Size: 12 AWG Solid, 8 AWG Stranded
• Maximum Run Conductor Size: 12 AWG Solid, 8 AWG Stranded
• Minimum Tap Conductor Size: 12 AWG Solid, 8 AWG Stranded
• Catalog Description: TYPE HPS SPLIT-BOLT CONNECTOR WITH SPACER, CONDUCTOR RANGE FOR EQUAL MAIN AND TAP ACSR 8 STR-12 SOL, CONDUCTOR RANGE FOR EQUAL MAIN AND TAP CU OR AL 8 STR-12 SOL, MINIMUM TAP WITH ONE MAX MAIN 12 SOL, TIN PLATED
• Category: Large Terminals & Connectors
• Full Technical Description: Split Bolt Type; Electrolytic Tin Plated Copper Spacer, Tin Plated Copper Alloy Bolt/Pressure Bar Material; 12 AWG Solid, 8 AWG Stranded min. Run Conductor Size; 12 AWG Solid, 8 AWG Stranded Max. Run Conductor Size; 12 AWG Solid, 8 AWG Stranded min. Tap Conductor Size; 12 AWG Solid, 8 AWG Stranded Max. Tap Conductor Size; Split Bolt With Spacer Installation; Copper/Aluminum/Acsr Conductor Material; UL, CSA Approval; Overall Dimension 1/2 Inch L X 29/32 Inch H; HPS Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Blackburn
• Sub Category: Mechanical Single Cable Tap
• Unspsc: 39121408
• UPC 12 Digit: 783786200412
• SKU Name: 8hps blkbrn
