PENNUNION ADB245001 1-Pole Power Distribution Block

Overview

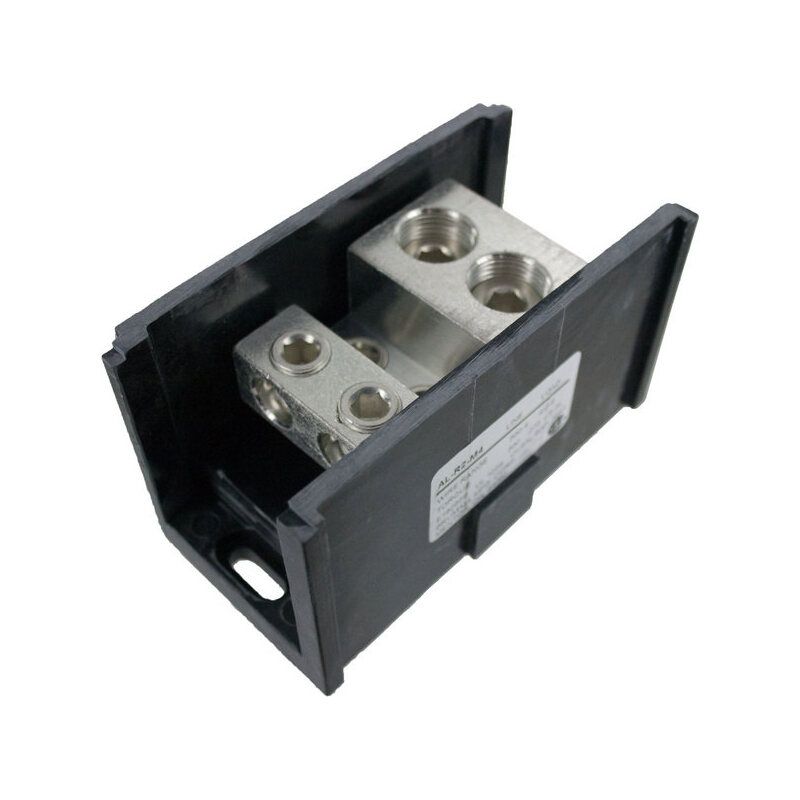

PENNUNION ADB245001 1-Pole Aluminum Power Distribution Block

Product Specifications

• Catalog Description: POWER DISTRIBUTION BLOCK, 1-POLE, 2 PRIMARY OPENINGS, 4 SECONDARY OPENINGS, 600V, 760A
• Category: Compression Connectors and Terminals
• Full Technical Description: Standard Type Aluminum Power Distribution Block; 1-Pole Configuration; Double Run with Multiple Taps Connection; 2 Primary Openings Per Pole; 4 Secondary Openings Per Pole; Primary Wire Range 4 AWG to 500 MCM; Secondary Wire Range 6 AWG to 4/0 AWG; 600 Volt Rating; 760 Ampere Current Rating Per Pole; Tin-Plated Aluminum Connector Material; High Strength Aluminum Alloy Construction; Glass-Filled Polycarbonate Housing Material; Dead Front Polycarbonate Cover Type; Tongue and Groove Interlocking Design for Custom Pole Configurations; Dual Rated for Aluminum and Copper Conductors; 90 Deg C Rated; RoHS Compliant; Dimensions 2.81 Inch Length x 5.35 Inch Width x 3.25 Inch Height; Alternate Listed Dimensions 5.5 Inch Length x 2.9 Inch Width x 3.25 Inch Height; UL Recognized and CSA Certified
• Made In Usa:
• Manufacturer: Penn-Union Corp.
• Manufacturer Brand: Penn-Union Corp.
• Sub Category: Power Distribution Block
• Unspsc:
• UPC 12 Digit:
• SKU Name: ADB245001

Resources

Manufacturer Specification Sheet
