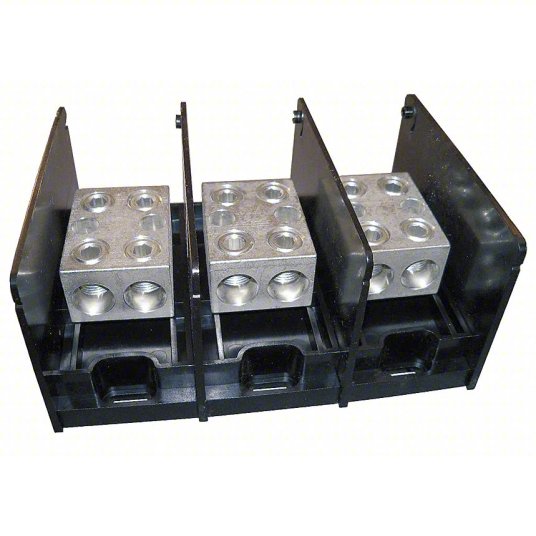

PENNUNION ADB245003 3-Pole Power Distribution Block

Overview

PENNUNION ADB245003 3-Pole Aluminum Power Distribution Block

Product Specifications

• Catalog Description: POWER DISTRIBUTION BLOCK, 3-POLE, 2 PRIMARY OPENINGS PER POLE, 4 SECONDARY OPENINGS PER POLE, 600V, 760A
• Category: Compression Connectors and Terminals
• Full Technical Description: Standard Type Power Distribution Block; ADB Model; 3-Pole Configuration; 2 Primary Openings Per Pole; 4 Secondary Openings Per Pole; Primary Wire Range 4 AWG to 500 MCM; Secondary Wire Range 6 AWG to 4/0 AWG; 600 Volt Rating; 760 Ampere Current Rating; Tin-Plated Aluminum Connector Material; Glass-Filled Polycarbonate Housing Material; Dead Front Polycarbonate Cover Type; 7.81 Inch Length x 5.35 Inch Width x 3.25 Inch Height; UL and CSA Approved
• Made In Usa:
• Manufacturer: Penn-Union Corp.
• Manufacturer Brand: Penn-Union Corp.
• Sub Category: Power Distribution Block
• Unspsc:
• UPC 12 Digit:
• SKU Name: ADB245003
