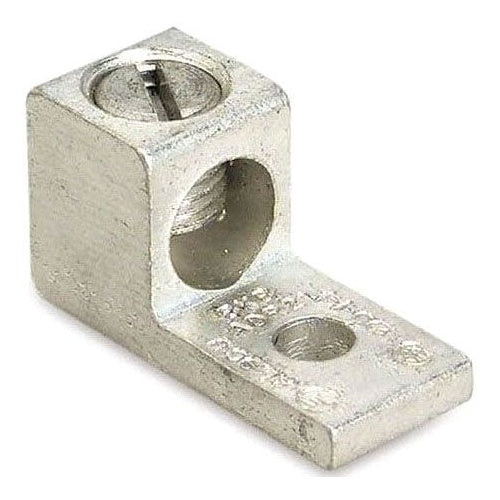

Blackburn ADR25 6-250 Aluminum/Copper Screw Lug

Overview

Blackburn ADR25 6-250 Aluminum/Copper Screw Lug

Product Specifications

• UPC: 78378661010
• Screw Type: Socket
• Material: Tin Plated Aluminum
• Number Of Pad Holes: 1
• Pad Size: 1 Inch Length x 1 Inch Width x 1/4 Inch Thickness
• Stud Size: 5/16 Inch
• Overall Length: 2 Inch
• Approval: UL 486B, CSA
• Additional Information: Height 1-1/8 Inch
• Catalog Number: ADR25
• Brand Name: Blackburn
• Type: Dual Rated
• Number Of Conductors: 1
• Minimum Conductor Size: 6 AWG Stranded
• Maximum Conductor Size: 250 KCMIL
• Conductor Material: Copper/Aluminum
• Pad Type: Straight
• Catalog Description: TYPE ADR-ALCUL SINGLE-CONDUCTOR, ONE-HOLE MOUNT, CONDUCTOR RANGE MAX 250 KCMIL, MIN 6 STR, SOCKET SCREW, TIN PLATED
• Category: Large Terminals & Connectors
• Full Technical Description: Dual Rated Type; Tin Plated Aluminum Material; 2 Inch Overall Length; 6 AWG Stranded min. Conductor Size; 250 kcmil Max. Conductor Size; Copper/Aluminum Conductor Material; UL 486B, CSA Approval; 1 Conductor(S); 5/16 Inch Stud Size; 1 Inch Length X 1 Inch Width X 1/4 Inch Thickness Pad Size; 1 Pad Hole(S); Straight Pad Type; Socket Screw Type; Adr-ALCUL[TM] Brand; Height 1-1/8 Inch
• Manufacturer: THOMAS & BETTS BLACKBURN
• Manufacturer Brand: T&B Blackburn
• Sub Category: Mechanical Cable Lug
• Unspsc: 39121408
• UPC 12 Digit: 783786610105
• SKU Name: adr25 blkbrn
