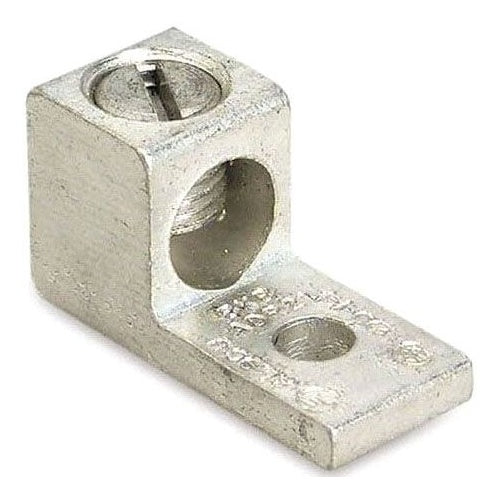

Blackburn ADR30 6-300 Aluminum/Copper Screw Lug

Overview

Blackburn ADR30 6-300 Aluminum/Copper Screw Lug

Product Specifications

• UPC: 78378661016
• Screw Type: Socket
• Material: Tin Plated Aluminum
• Number Of Pad Holes: 1
• Pad Size: 1 Inch L x 1 Inch W x 1/4 Inch Thk
• Stud Size: 5/16 Inch
• Overall Length: 2 Inch
• Approval: UL 486B, CSA
• Catalog Number: ADR30
• Brand Name: ADR-ALCUL[TM]
• Type: Dual Rated
• Number Of Conductors: 1
• Minimum Conductor Size: 6 AWG Stranded
• Maximum Conductor Size: 300 KCMIL
• Conductor Material: Aluminum/Copper
• Pad Type: Straight
• Catalog Description: TYPE ADR-ALCUL SINGLE-CONDUCTOR, ONE-HOLE MOUNT, CONDUCTOR RANGE 6 STR-300 KCMIL, LENGTH 2.0 INCHES, WIDTH 1.0 INCH, HEIGHT 1-1/8 INCHES, SOCKET SCREW, TIN PLATED
• Category: Large Terminals & Connectors
• Full Technical Description: Dual Rated Type; Tin Plated Aluminum Material; 2 Inch Overall Length; 6 AWG Stranded min. Conductor Size; 300 kcmil Max. Conductor Size; Aluminum/Copper Conductor Material; UL 486B, CSA Approval; 1 Conductor(S); 5/16 Inch Stud Size; 1 Inch L X 1 Inch W X 1/4 Inch Thk Pad Size; 1 Pad Hole(S); Straight Pad Type; Socket Screw Type; Adr-ALCUL[TM] Brand
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Blackburn
• Sub Category: Mechanical Cable Lug
• Unspsc: 39121408
• UPC 12 Digit: 783786610167
• SKU Name: adr30 blackburn
