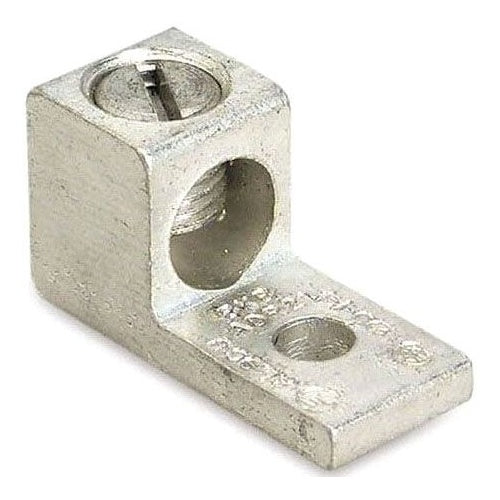

Blackburn ADR50 4-500 Aluminum/Copper Lug

Overview

Blackburn ADR50 4-500 Aluminum/Copper Lug

Product Specifications

• UPC: 78378661027
• Screw Type: Socket
• Material: Tin Plated Aluminum
• Number Of Pad Holes: 1
• Pad Size: 1-19/32 Inch Length x 1-1/2 Inch Width x 5/16 Inch Thickness
• Stud Size: 3/8 Inch
• Overall Length: 2-13/16 Inch
• Approval: UL 486B, CSA
• Additional Information: Height 1-19/16 Inch
• Catalog Number: ADR50
• Brand Name: Blackburn
• Type: Dual Rated
• Number Of Conductors: 1
• Minimum Conductor Size: 4 AWG Stranded
• Maximum Conductor Size: 500 KCMIL
• Conductor Material: Copper/Aluminum
• Pad Type: Straight
• Catalog Description: TYPE ADR-ALCUL SINGLE-CONDUCTOR, ONE-HOLE MOUNT, CONDUCTOR RANGE 4 STR-500 KCMIL, LENGTH 2-13/16 INCHES, WIDTH 1-1/2 INCHES, HEIGHT 1-9/16 INCHES, SOCKET SCREW, TIN PLATED
• Category: Large Terminals & Connectors
• Full Technical Description: Dual Rated Type; Tin Plated Aluminum Material; 2-13/16 Inch Overall Length; 4 AWG Stranded min. Conductor Size; 500 kcmil Max. Conductor Size; Copper/Aluminum Conductor Material; UL 486B, CSA Approval; 1 Conductor(S); 3/8 Inch Stud Size; 1-19/32 Inch Length X 1-1/2 Inch Width X 5/16 Inch Thickness Pad Size; 1 Pad Hole(S); Straight Pad Type; Socket Screw Type; Adr-ALCUL[TM] Brand; Height 1-19/16 Inch
• Manufacturer: THOMAS & BETTS BLACKBURN
• Manufacturer Brand: T&B Blackburn
• Sub Category: Mechanical Cable Lug
• Unspsc: 39121408
• UPC 12 Digit: 783786610273
• SKU Name: adr50 blkbrn
