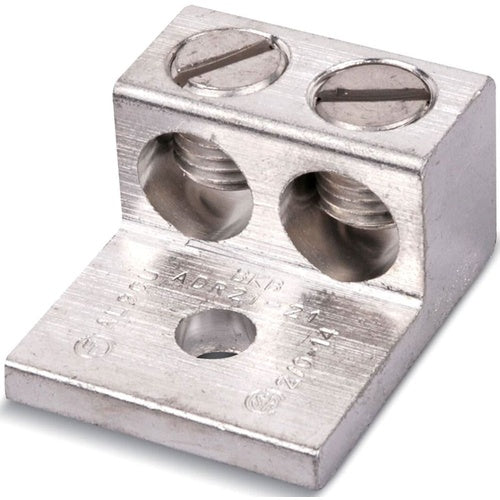

Blackburn ADR60-21 2/2-600 Lug

Overview

Blackburn ADR60-21 2/2-600 Lug

Product Specifications

• UPC: 78378661033
• Screw Type: Slot
• Material: Tin Plated Aluminum
• Number Of Pad Holes: 1
• Pad Size: 1-13/16 Inch Length x 2-13/32 Inch Width x 7/16 Inch Thickness
• Stud Size: 1/2 Inch
• Overall Length: 3-3/16 Inch
• Approval: UL 486B, CSA
• Additional Information: Height 1-9/16 Inch
• Catalog Number: ADR60-21
• Brand Name: Blackburn
• Type: Dual Rated
• Number Of Conductors: 2
• Minimum Conductor Size: 2 AWG Stranded
• Maximum Conductor Size: 600 KCMIL
• Conductor Material: Copper/Aluminum
• Pad Type: Straight
• Catalog Description: TYPE ADR-ALCUL TWO-CONDUCTOR, ONE-HOLE MOUNT FOR CONDUCTOR RANGE MAX 600 KCMIL, MIN 2 STR.
• Category: Large Terminals & Connectors
• Full Technical Description: Dual Rated Type; Tin Plated Aluminum Material; 3-3/16 Inch Overall Length; 2 AWG Stranded min. Conductor Size; 600 kcmil Max. Conductor Size; Copper/Aluminum Conductor Material; UL 486B, CSA Approval; 2 Conductor(S); 1/2 Inch Stud Size; 1-13/16 Inch Length X 2-13/32 Inch Width X 7/16 Inch Thickness Pad Size; 1 Pad Hole(S); Straight Pad Type; Slot Screw Type; Adr-ALCUL[TM] Brand; Height 1-9/16 Inch
• Manufacturer: THOMAS & BETTS BLACKBURN
• Manufacturer Brand: T&B Blackburn
• Sub Category: Mechanical Cable Lug
• Unspsc: 39121408
• UPC 12 Digit: 783786610334
• SKU Name: adr6021 blackburn
