ILSCO AGC-4 2-1/2 To 4 Conduit Ground ClAMP

Overview

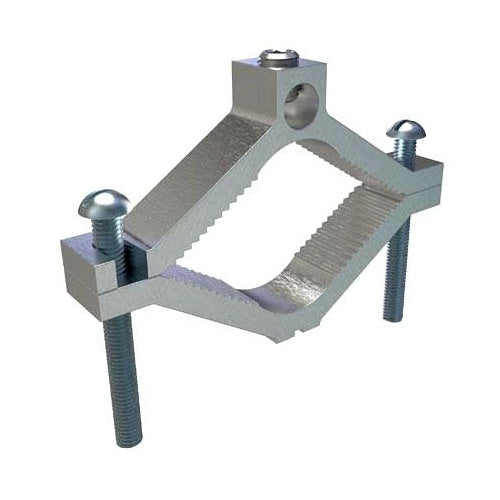

Ilsco AGC-4 2-1/2 To 4 Conduit Ground Clamp

Product Specifications

• UPC: 78366900064
• Used On: Copper/Aluminum Conductor to Copper Water Pipe, Galvanized Pipe or Steel Conduit
• Additional Information: RoHS Compliant; Hex Socket Screw Size 5/16 Inch
• Catalog Number: AGC-4
• Model: AGC
• Conductor Size: 6 AWG to 250 KCMIL
• Ips Size: 2-1/2 to 4 Inch
• Size: 6-5/16 Inch Length x 1 Inch Width
• Installation: (2) Screw Connector to Pipe, (1) Screw Wire Connector
• Material: Clear Plated High-Strength 6061-T6 Aluminum Alloy
• Approval: UL
• Catalog Description: PERMAGROUND ALUMINUM GROUND CLAMP, CONDUCTOR RANGE 250-6, PIPE SIZES 2-1/2 TO 4IN, UL
• Category: Ground Rods & Grounding Systems
• Full Technical Description: Clear Plated High-Strength 6061-T6 Aluminum Alloy Material; 6-5/16 Inch Length X 1 Inch Width Size; Copper/Aluminum Conductor to Copper Water Pipe, Galvanized Pipe or Steel Conduit Used on; (2) Screw Connector to Pipe, (1) Screw Wire Connector Installation; UL Approval; 6 AWG to 250 kcmil Conductor Size; 2-1/2 to 4 Inch IPS Size; RoHS Compliant; Hex Socket Screw Size 5/16 Inch; AGC Model
• Manufacturer: ILSCO Corp.
• Manufacturer Brand: ILSCO Corp.
• Proposition 65 Warning (Ca): This product is in compliance with Prop65; it is not known to contain any chemicals associated with this regulation
• Sub Category: Conduit To Rod Clamp
• Unspsc: 39121408
• UPC 12 Digit: 783669000641
• SKU Name: agc4 ilsco

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
