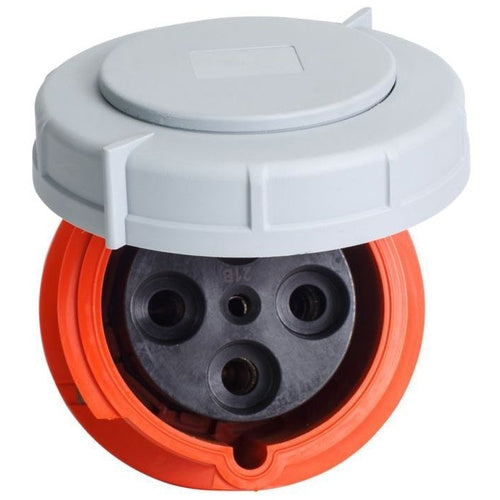

Cooper AH4100C12W Connector Pin & Sleeve 100A 125-250V 3P4W Watertight Orange

Overview

Cooper AH4100C12W Connector Pin & Sleeve 100A 125-250V 3P4W Watertight Orange

Product Specifications

• Brand Name: Eaton
• Special Features: Watertight P&S connectors
• Sub Brand: Eaton Wiring Devices
• Type: Industrial
• Catalog Description: EATON ARROW HART PIN AND SLEEVE CONNECTOR, IP69K RATED, #4 -1/0 AWG, #12 - #16 AWG (PILOT), 100A, 125/250V, BACK WIRE, ORANGE, NICKEL PLATED BRASS, IP67, NYLON, THREE-POLE, FOUR-WIRE, GROUNDING, 0.97-1.94IN (2.46-5.00CM), FEMALE, NYLON
• Category: Pin & Sleeve Devices
• Full Technical Description: Nylon PA66 Material; 0.97 Inch min. Cable Outer Diameter; 1.94 Inch Max. Cable Outer Diameter; 4 Wire(S); UL 498, UL 1682, UL 1686, CSA C22.2 Approval; 125/250 VAC Voltage Rating; 100 Ampere Current Rating; 3 Pole(S); Corrosion Resistant, Dusttight, Watertight; Applicable Standard IEC 60309-1/60309-2; Flammability Rating UL 94- HB (Housing), UL 94-V0 (Contact Carriers); Threaded Entry 2 Inch NPT; AH Model
• Manufacturer: Eaton Cooper Wiring
• Manufacturer Brand: Eaton Wiring Devices Industrial/Residential
• Sub Category: Pin and Sleeve Connector
• Unspsc: 39121402
• UPC 12 Digit: 040893620497
• SKU Name: ah ah4100c12w

Resources

• Product Brochure
• Manufacturer Spec Sheet
