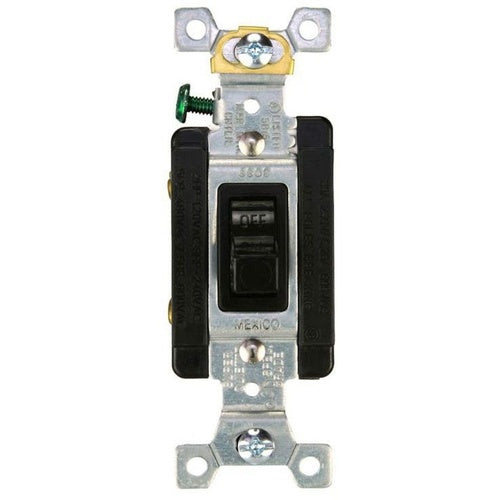

Cooper AH6808UDAC Manual Cont 20/30A 600/250Vac 2Pole Back & Side Wire Black

Overview

Cooper AH6808UDAC Manual Cont 20/30A 600/250Vac 2Pole Back & Side Wire Black

Product Specifications

• Brand Name: Eaton
• Special Features: Motor control switches, swt/encl combos
• Sub Brand: Eaton Wiring Devices
• Type: Industrial
• Catalog Description: EATON MANUAL MOTOR CONTROLLER, #14-10 AWG, 20/30A,INDUSTRIAL, WALL, 600/250V, BACK AND SIDE, MAINTAINED CONTACT, BLACK, OPEN, TWO-POLE, -20-65C, SINGLE-PHASE, TOGGLE SWITCH, COPPER-ALLOY TERMINAL, BRASS SCREW, SINGLE-THROW, THERMOSET
• Category: Disconnect Motor Switches & Accessories
• Full Technical Description: 1-Phase Type; Glass-Filled Nylon Material; 1.38 Inch W X 1.04 Inch D X 4.06 Inch H Size; DPST Operation Type; UL (Canada and Us) Approval; 250/600 VAC Voltage Rating; 20 Ampere at 600 VAC, 30 Ampere at 250 VAC Current Rating; 3 HP HP at 240 V; 2 HP HP at 120 V; 7.5 HP HP at 600 V; 5 HP HP at 480 V; Termination Style Back and Side Wired Screw; Wire Size 10 AWG; RoHS Compliant; NAFTA Compliant
• Manufacturer: Eaton Cooper Wiring
• Manufacturer Brand: Eaton Wiring Devices Industrial/Residential
• Sub Category: Motor Starting Switch
• Unspsc: 39122223
• UPC 12 Digit: 040893123905
• SKU Name: ah ah6808udac

Resources

• Manufacturer Spec Sheet
