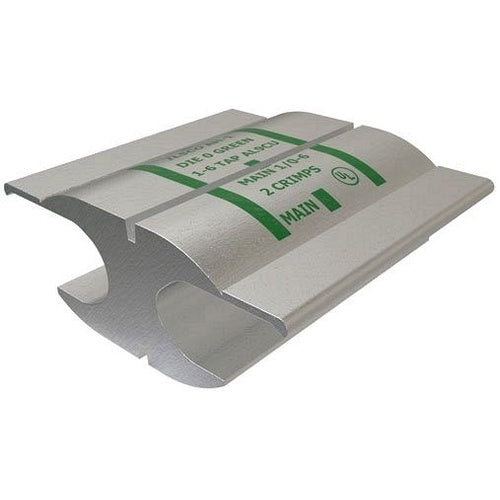

ILSCO AH-1 Aluminum Compression Tap Connector

Overview

Ilsco AH-1 Aluminum Compression Tap Connector

Product Specifications

• UPC: 78366900400
• Maximum Tap Conductor Size: 1 AWG Stranded
• Die Index: O
• Body Material: High Strength Aluminum Alloy, Oxide Inhibitor
• Approval: UL 453G, UL 486A/B
• Additional Information: Size 1.62 Inch L x 1.78 Inch W; Temperature Rating 90 Deg C
• Catalog Number: AH-1
• Model: AH
• Voltage Rating: 600 V
• Shape: H
• Conductor Material: Aluminum/Copper
• Minimum Run Conductor Size: 6 AWG Stranded
• Maximum Run Conductor Size: 1/0 AWG Stranded
• Minimum Tap Conductor Size: 6 AWG Stranded
• Catalog Description: ALUMINUM COMPRESSION TAP, MAIN RANGE 1/0-6, TAP RANGE 1-6, TIN PLATED, UL
• Category: Large Terminals & Connectors
• Full Technical Description: 6 AWG Stranded min. Run Conductor Size; 1/0 AWG Stranded Max. Run Conductor Size; 6 AWG Stranded min. Tap Conductor Size; 1 AWG Stranded Max. Tap Conductor Size; H Shape; Aluminum/Copper Conductor Material; UL 453G, UL 486A/B Approval; 600 V Voltage Rating; High Strength Aluminum Alloy, Oxide Inhibitor Body Material; O Die Index; Size 1.62 Inch L X 1.78 Inch W; Temperature Rating 90 Deg C; AH Model
• Made In Usa: Yes
• Manufacturer: ILSCO Corp.
• Manufacturer Brand: ILSCO Corp.
• Proposition 65 Warning (Ca): This product is in compliance with Prop65; it is not known to contain any chemicals associated with this regulation
• Sub Category: Compression Cable Tap
• Unspsc: 39121448
• UPC 12 Digit: 783669004007
• SKU Name: ah1 ilsco
