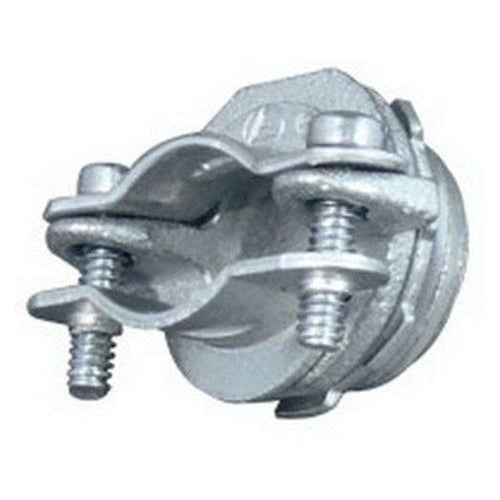

Appleton 15233-DC 3/4" 2-Screw Nmc/Sec Connector

Overview

Appleton 15233-DC 3/4" 2-Screw Nmc/Sec Connector

Product Specifications

• UPC: 78138178045
• Material: Die-Cast Zinc
• Approval: UL, CSA
• Used On: Non-Metallic Sheathed/Service Entrance Cable
• Additional Information: Includes Locknut; Application Commercial, Industrial, Hazardous Location; Applicable Standard NEC/CEC, NEMA FB-1
• Catalog Number: 15233-DC
• Type: 2-Screw
• Minimum Opening: 0.25 Inch
• Maximum Opening: 0.81 Inch
• Trade Size: 3/4 Inch
• Thread Length: 0.56 Inch
• Length: 0.38 Inch
• Diameter: 1.69 Inch
• Catalog Description: CONDUIT CONNECTOR, SIZE: 3/4 IN, CONNECTION: ARMORED CABLE X FLEXIBLE METAL CONDUIT, CONDUCTOR RANGE: 1/4 - 0.81 IN, MATERIAL: DIE-CAST ZINC, HEIGHT: 1.69 IN, WIDTH: 0.38 IN, THREAD LENGTH: 0.56 IN, STANDARD: UL 514B, UL LISTED: E23237,
• Category: Service Entrance Cable Fittings
• Full Technical Description: Die-Cast Zinc Material; 0.38 Inch; Non-Metallic Sheathed/Service Entrance Cable Used on; 0.56 Inch Thread Length; 0.25 Inch min. Opening; 0.81 Inch Max. Opening; UL 514B, CSA C22.2 Approval; 1.69 Inch Diameter; 3/4 Inch Trade Size; Includes Locknut; Application Commercial/Industrial; Applicable Standard Nec/Cec, NEMA FB-1
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Service Entrance Cable Connector
• Unspsc: 39121419
• UPC 12 Digit: 781381780452
• SKU Name: app 15233dc
