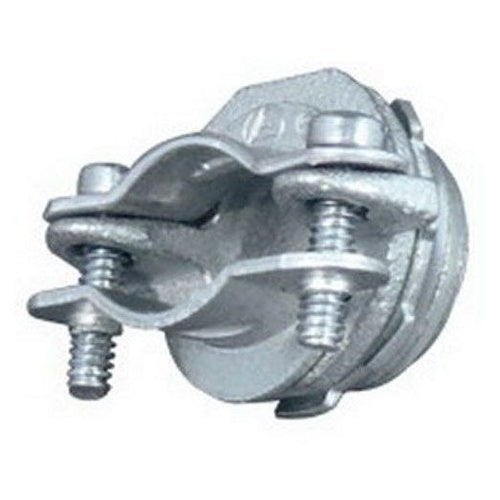

Appleton 15234-DC 1" 2-Screw Service Entrance Connector

Overview

Appleton 15234-DC 1" 2-Screw Service Entrance Connector

Product Specifications

• UPC: 78138178055
• Approval: UL 514B, CSA C22.2
• Used On: Non-Metallic Sheathed/Service Entrance Cable
• Additional Information: Applicable Standard NEMA FB-1; Includes Locknut
• Catalog Number: 15234-DC
• Minimum Opening: 0.38 Inch
• Maximum Opening: 1.03 Inch
• Trade Size: 1 Inch
• Thread Length: 0.5 Inch
• Length: 0.56 Inch
• Diameter: 1.94 Inch
• Material: Die-Cast Zinc
• Catalog Description: CONDUIT CONNECTOR, SIZE: 1 IN, CONNECTION: ARMORED CABLE X FLEXIBLE METAL CONDUIT, CONDUCTOR RANGE: 0.38 - 1.03 IN, MATERIAL: DIE-CAST ZINC, HEIGHT: 1.94 IN, WIDTH: 0.56 IN, THREAD LENGTH: 0.5 IN, STANDARD: UL 514B, UL LISTED: E23237, CS
• Category: Service Entrance Cable Fittings
• Full Technical Description: Die-Cast Zinc Material; 0.56 Inch; Non-Metallic Sheathed/Service Entrance Cable Used on; 0.5 Inch Thread Length; 0.38 Inch min. Opening; 1.03 Inch Max. Opening; UL 514B, CSA C22.2 Approval; 1.94 Inch Diameter; 1 Inch Trade Size; Includes Locknut; Application Commercial/Industrial; Applicable Standard Nec/Cec, NEMA FB-1
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Service Entrance Cable Connector
• Unspsc: 39121419
• UPC 12 Digit: 781381780551
• SKU Name: app 15234dc
