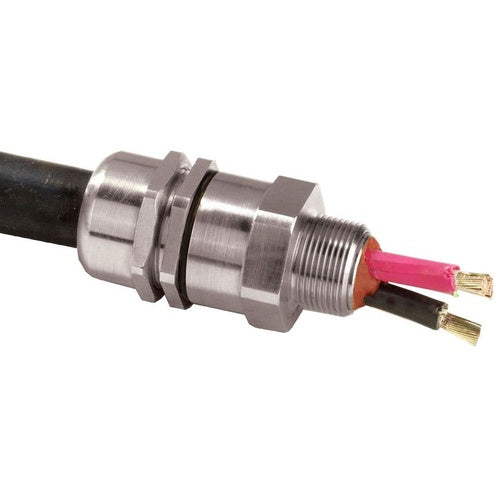

Appleton 25Px1005 1" Nickel Plated Cable Gland CMP

Overview

Appleton 25Px1005 1" Nickel Plated Cable Gland CMP

Product Specifications

• Catalog Description: CABLE GLAND, TYPE STRAIGHT, THREAD SIZE 1 INCH NPT, CONSTRUCTIONAL FEATURE FLAMEPROOF, EXPLOSIONPROOF, CABLE TYPE UNARMORED, TRAY, SHIPBOARD, SO CABLE, CABLE OUTER DIAMETER 0.44 TO 0.79 INCH, MATERIAL NICKEL PLATED BRASS, LENGTH 3.25 INCH, ENCLOSURE NEMA 4X, IP66/IP67/IP68, OPERATING TEMPERATURE -60 TO 85 DEG C, APPROVAL UL 2225/E161256, CSA C22.2, SEAL MATERIAL LOW SMOKE FUMES THERMOPLASTIC ELASTOMER, EPOXY PUTTY, THREAD SIZE 15 MM L X 1.5 MM PITCH, MAXIMUM NUMBER OF CORES 0.83 INCH, WEIGHT 0.4 KG
• Category: Bx, Mc, Armored Cable Fittings
• Full Technical Description: Nickel Plated Brass Material; Unarmored/Tray/Shipboard/So Cable Type; UL 2225, DNV, CSA (Canada and Us), CSA C22.2, ABS Approval; Class I Div 1 Group C D, Class I Div 2 Group A B C D, Class II Div 1 and 2 Group E F G, Class III, Zone 1, NEMA 4X, IP66/67/68 Enclosure; 1 Inch Thread Size; -76 to 185 Deg F (Ambient) Operating Temperature; Flameproof; 0.44 to 0.79 Inch Cable Outer Diameter; Thread Length 0.8 Inch; Seal Material Low Smoke Fume Thermoplastic Elastomer; Includes Epoxy Putty Sealing Compound; Application Hazardous Location; Applicable Standard Nec/Cec, Atex/Iecex, Inmetro, Eurasec, Kcc; PXSS2K Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Cable Gland
• Unspsc: 39121431
• UPC 12 Digit: 781381249904
• SKU Name: app 25px1005
