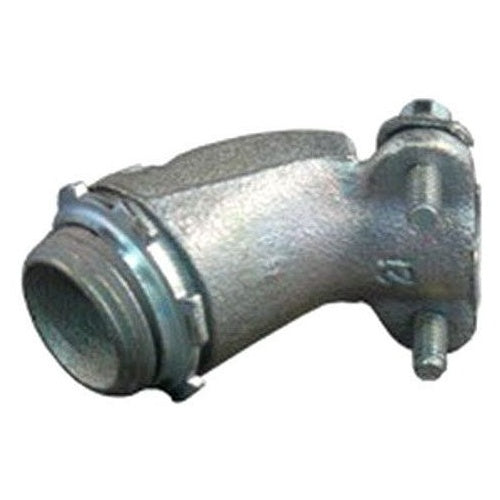

Appleton 7245V 3/8 45D 2-Screw Flex/Bx Connector

Overview

Appleton 7245V 3/8 45D 2-Screw Flex/Bx Connector

Product Specifications

• UPC: 78138177260
• Throat Type: Non-Insulated
• Material: Electro Zinc Plated Steel/Malleable Iron
• Approval: UL 514B, CSA C22.2
• Additional Information: Used On Armored Cable/Flexible Metal Conduit; Applicable Standard NEMA FB-1
• Catalog Number: 7245V
• Type: 45 Deg
• Trade Size: 3/8 Inch
• Knockout Size: 1/2 Inch
• Cable Opening: Single
• Cable/Conduit Type: Armored Cable/Flexible Metal Conduit
• Cord Size: 0.38 to 0.63 Inch
• Length: 1.63 Inch
• Catalog Description: 45 DEG CONDUIT CONNECTOR, SIZE: 3/8 IN, CONNECTION: ARMORED CABLE X FLEXIBLE METAL CONDUIT, CONDUCTOR RANGE: 0.38 - 0.63 IN, MATERIAL: MALLEABLE IRON/STEEL, FINISH: ZINC ELECTROPLATE, LENGTH: 1.63 IN, WIDTH: 1 IN, THREAD LENGTH: 0.44 IN, KN
• Category: Liquid Tight Flex. Conduit Fittings
• Full Technical Description: 45 Degree Type; Zinc Electroplated Malleable Iron/Steel Material; UL 514B, CSA C22.2 Approval; 3/8 Inch Trade Size; 1/2 Inch Knockout Size; 0.38 to 0.63 Inch Cord Size; Armored Cable/Flexible Metal Conduit; Single Cable Opening; Bushed Hole Diameter 0.53 Inch; Application Commercial/Industrial; Applicable Standard Nec/Cec, NEMA FB-1
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Armored Cable/Flex Conduit Connector
• Unspsc: 39121419
• UPC 12 Digit: 781381772600
• SKU Name: app 7245v

Resources

• Manufacturer Spec Sheet
