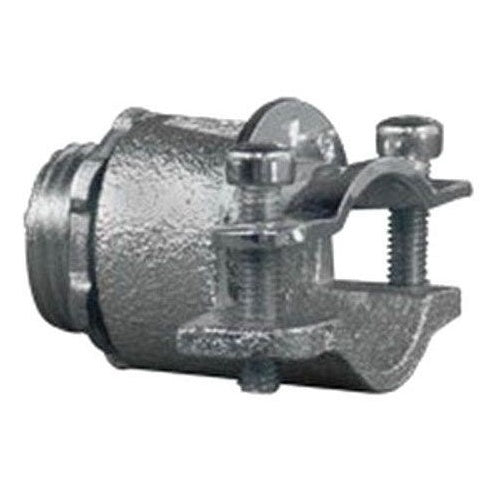

Appleton 7287V 1/2" Malleable 2-Screw Flex/Bx Connector

Overview

Appleton 7287V 1/2" Malleable 2-Screw Flex/Bx Connector

Product Specifications

• UPC: 78138177290
• Throat Type: Non-Insulated
• Material: Zinc Electroplated Malleable Iron
• Approval: UL, CSA
• Additional Information: Includes Locknut; Application Commercial and Industrial; Applicable Standard NEC/CEC, NEMA FB-1
• Catalog Number: 7287V
• Type: Straight
• Trade Size: 1/2 Inch
• Cable Opening: Single
• Cable/Conduit Type: Armored Cable/Flexible Metal Conduit
• Cord Size: 0.41 to 0.94 Inch
• Length: 1.5 Inch
• Installation: (2) Screw
• Catalog Description: STRAIGHT CONDUIT CONNECTOR, SIZE: 1/2 IN, CONNECTION: ARMORED GROUND WIRE X NONMETALLIC SHEATHED CABLE, CONDUCTOR RANGE: 0.41 - 0.94 IN, MATERIAL: DIE-CAST ZINC, LENGTH: 1.09 IN, WIDTH: 1.88 IN, THREAD LENGTH: 0.41 IN, STANDARD: UL 514B, UL
• Category: Bx, Mc, Armored Cable Fittings
• Full Technical Description: Straight Type; Zinc Plated Malleable Iron Material; 1.5 Inch; UL 514B, CSA C22.2 Approval; 1/2 Inch Trade Size; 0.41 to 0.94 Inch Cord Size; Armored Ground Wire/Non-Metallic Sheathed Cable; Single Cable Opening; Bushed Hole Diameter 0.59 Inch; Application Commercial/Industrial; Applicable Standard Nec/Cec, NEMA FB-1
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Armored Cable/Flex Conduit Connector
• Unspsc: 39121419
• UPC 12 Digit: 781381772907
• SKU Name: app 7287v

Resources

• Manufacturer Spec Sheet
