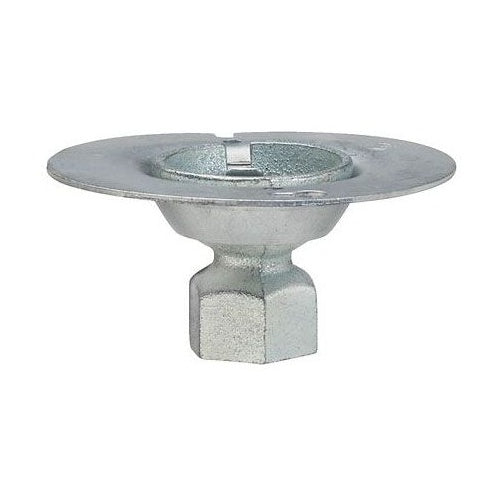

Appleton 8436R 4" Oct 3/4" Swivel Hanger

Overview

Appleton 8436R 4" Oct 3/4" Swivel Hanger

Product Specifications

• UPC: 78138133701
• Additional Information: Length 2 Inch; Application Suspension of HID, Fluorescent and Incandescent Lighting Fixture; Approval UL, CSA
• Catalog Number: 8436R
• Brand Name: UNILETS[R]
• Type: Ball Type Swivel
• Swivel Angle: 20 Degree
• Fixture Stem Size: 3/4 Inch
• Material: Zinc Electroplated and Clear Chromate Steel and Malleable Iron
• Capacity: 50 Pound
• Used On: Threaded Rigid Metal Conduit and IMC
• Catalog Description: UNILETS SHC BALL TYPE SWIVEL HANGER COVER, SIZE: 3/4 IN FIXTURE STEM, LENGTH: 2 IN, MATERIAL: STEEL AND MALLEABLE IRON, LAMP TYPE: INCANDESCENT, FLUORESCENT, HID, MOUNTING: CEILING, FIXTURE TYPE: INCANDESCENT, FINISH: ZINC ELECTROPLATE, CLE
• Category: Bar Hangers & Outlet Box Accy
• Full Technical Description: Ball Type Swivel Type; Zinc Electroplated/Clear Chromate Malleable Iron/Steel Material; Shc 3-1/4 Inch and 4 Inch Imc/Rigid Conduit Octagonal Outlet Box Used on; 50 Pound Capacity; 20 Degree Swivel Angle; 3/4 Inch Fixture Stem Size; Overall Length 2 Inch; Applicable Standard UL 514A, CSA, Nec/Cec
• Made In Usa: Yes
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Pendant Fixture Hanger Cover
• Unspsc: 39111817
• UPC 12 Digit: 781381337014
• SKU Name: app 8436r

Resources

• Manufacturer Spec Sheet
