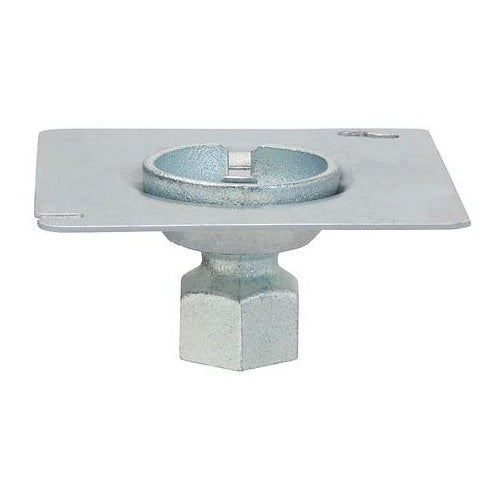

Appleton 8458R 4" Sq 1/2" Swivel Cover

Overview

Appleton 8458R 4" Sq 1/2" Swivel Cover

Product Specifications

• UPC: 78138133703
• Additional Information: Length 1.75 Inch
• Catalog Number: 8458R
• Brand Name: Unilet[R]
• Type: Ball Type Swivel
• Swivel Angle: 20 Deg
• Fixture Stem Size: 1/2 Inch
• Material: Zinc Electroplated Steel
• Capacity: 50 Lb
• Used On: SHC Series 4 Inch Square Outlet Box
• Catalog Description: UNILETS SHC BALL TYPE SWIVEL HANGER COVER, SIZE: 1/2 IN FIXTURE STEM, LENGTH: 1-3/4 IN, MATERIAL: STEEL AND MALLEABLE IRON, LAMP TYPE: INCANDESCENT, FLUORESCENT, HID, MOUNTING: CEILING, FIXTURE TYPE: INCANDESCENT, FINISH: ZINC ELECTROPLATE,
• Category: Bar Hangers & Outlet Box Accy
• Full Technical Description: Ball Type Swivel Type; Zinc Electroplated/Clear Chromate Malleable Iron/Steel Material; Shc 4 Inch Imc/Rigid Conduit Square Outlet Box Used on; 50 Pound Capacity; 20 Degree Swivel Angle; 1/2 Inch Fixture Stem Size; Overall Length 1.75 Inch; Applicable Standard UL 514A, CSA, Nec/Cec
• Made In Usa: Yes
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Pendant Fixture Hanger Cover
• Unspsc: 39111817
• UPC 12 Digit: 781381337038
• SKU Name: app 8458r

Resources

• Manufacturer Spec Sheet
