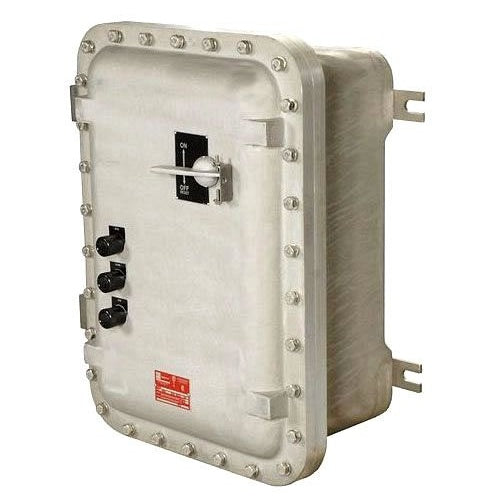

Appleton ACSEW091105 Explosion-Proof Watertight Control Center

Overview

Appleton ACSEW091105 Explosion-Proof Watertight Control Center

Product Specifications

• UPC: 78138184719
• Used On: ACSEW SERIES CAST CONTROL CENTER
• Approval: UL 886, CSA C22.2
• Additional Information: MAXIMUM NUMBER OF OPERATER 16
• Catalog Number: ACSEW091105
• Brand Name: Appleton[R]
• Model: ACSEW
• Hub Size: 2 INCH
• Material: COPPER FREE ALUMINUM
• Enclosure: CLASS I DIV 1 AND 2 GROUP B C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 4/7B/7C/7D/9E/9F/9G
• Size: 13.88 INCH W X 8.69 INCH D X 15.5 INCH H
• Mounting: FEET
• Catalog Description: EXPLOSIONPROOF CAST CONTROL CENTER, CONSTRUCTIONAL FEATURE EXPLOSIONPROOF, DUST-IGNITIONPROOF, VOLTAGE RATING 600 VAC, CURRENT RATING 10 AMPERE, OPERATOR TYPE BUTTON, PILOT LIGHT TYPE 6 V TRANSFORMER, ENCLOSURE MATERIAL SHOT BLAST COPPER-FREE ALUMINUM, ENCLOSURE CLASS I DIV 1 AND 2 GROUP B C D, CLASS I ZONE 1 AND 2 GROUP IIA IIB, IP66, CLASS II, DIV 1 AND 2 GROUP E F G, CLASS III, NEMA 4/7BCD/9EFG, APPROVAL UL 1203, CSA C22.2, INNER SIZE 11.13 INCH L X 9.38 INCH W X 4.81 INCH D, OVERALL SIZE 13.88 INCH W X 8.69 INCH D X 15.5 INCH H, COVER THICKNESS 0.69 INCH, WEIGHT 22 LB
• Category: Control Station Complete Assemblies
• Full Technical Description: Feet Mount Type; Shot Blast Sand Copper-Free Cast Aluminum Enclosure Material; UL 1203, CSA C22.2 Approval; 600 Volt AC Voltage Rating; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 4/7/9 Enclosure; 10 Amp Current Rating; Explosionproof, Dust Ignitionproof; Button Operator Type; 6 Volt AC Up to 600 Volt AC With Transformer Pilot Light Type; Overall Dimension 13.88 Inch Width X 8.69 Inch Depth X 15.5 Inch Height; Inner Size 11.13 Inch Length X 9.38 Inch Width X 4.81 Inch Depth; Thread Size 3/4 Inch-14 TPI; Cover Thickness 0.69 Inch; Number of Operators 16; Material Stainless Steel (Cover Bolt/Mounting Feet), Neopre
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Pushbutton Switch and Pilot Light Control Station
• Unspsc: 39121331
• UPC 12 Digit: 781381847193
• SKU Name: app acsew091105
