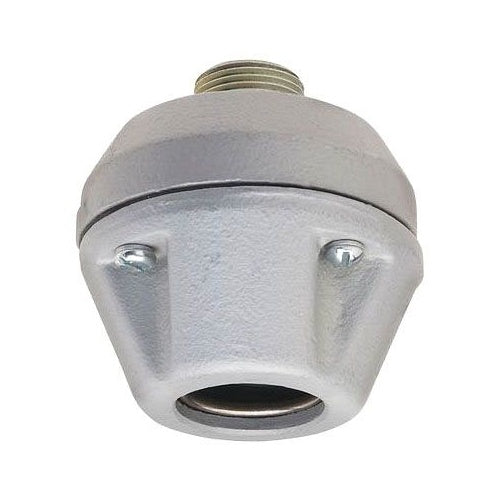

Appleton AHG-5050 1/2" Nipple Fixture Hanger

Overview

Appleton AHG-5050 1/2" Nipple Fixture Hanger

Product Specifications

• UPC: 78138114020
• Capacity: 40 Lb
• Additional Information: Approval UL, CSA
• Catalog Number: AHG-5050
• Brand Name: Unilet[R]
• Model: AHG
• Type: Cushion Fixture
• Swing Angle: 8 Degree
• Fixture Stem Size: 1/2 Inch
• Hub Size: 1/2 Inch Male Nipple
• Material: Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron
• Catalog Description: FIXTURE THREADED MALE HANGER, TYPE CUSHION FIXTURE, SWING ANGLE 8 DEG, FIXTURE STEM SIZE 1/2 INCH, HUB SIZE 1/2 INCH MALE NIPPLE, MATERIAL ZINC ELECTROPLATED CHROMATE EPOXY POWDER COATED MALLEABLE IRON, CAPACITY 40 LB, LENGTH 3.19 INCH, APPROVAL UL, CSA
• Category: Lighting Accessories
• Full Technical Description: Cushion/Flexible Hanger Type; Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron Material; UL, CSA Approval; 40 Pound Capacity; 1/2 Inch Male Nipple Conduit Size; LED Fixture Type; 1/2 Inch Fixture Stem Size; 8 Degree Swing Angle; Length 3.19 Inch; Used on Threaded Imc/Rigid Metal Conduit; Applicable Standard NEC; AHG Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Pendant Fixture Conduit Body Hanger
• Unspsc: 39111817
• UPC 12 Digit: 781381140201
• SKU Name: app ahg5050

Resources

• Manufacturer Spec Sheet
