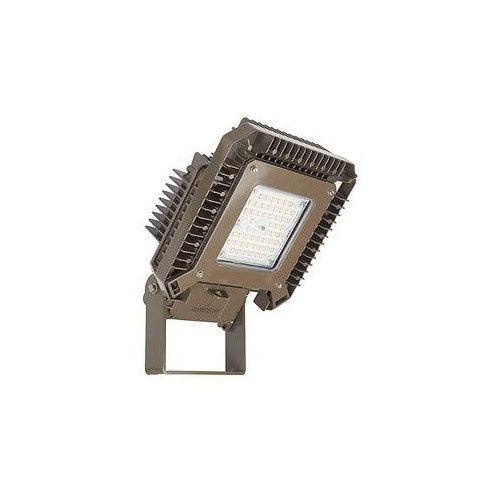

Appleton AMLGL7CG6BH AMLG 15Kl CW CG 7X7 BH

Overview

Appleton AMLGL7CG6BH AMLG 15Kl CW CG 7X7 BH

Product Specifications

• UPC: 78138160258
• Mounting: Yoke
• Housing Material: Copper-Free Aluminum
• Finish: Architectural Bronze Polyester
• Enclosure: NEMA 3R/4/4X, IP66/IP67, Class I Div 2 Group A B C D, Class I Zone 2 Group IIC, Class II Div 1 and 2 Groups E F G, Class III
• Size: 12.94 Inch Width x 5.05 Inch Depth x 19.84 Inch Height
• Approval: UL, CSA C22.2 (Canada and US)
• Additional Information: Area Classification Hazardous Location; Current Rating 0.33 Amp; Diffuser Material Clear Glass; Intensity 15300 Lumen; Color Temperature 5000 Kelvin (Cool White); Application Industrial, Chemical Processing, Oil and Gas Refinery, Petrochemical Plant, Foun
• Catalog Number: AMLGL7CG6BH
• Brand Name: Areamaster[TM]
• Model: AMLGL
• Lamp Type: LED
• Lamp Wattage: 115 Watt
• Lamp/Ballast Voltage: 347 to 480 Volt AC at 50/60 Hertz
• Distribution/Beam Spread: NEMA 7 x 7, 150 Degree x 150 Degree
• Epa: 1.82 Square Foot at 45 Degree to Ground, 1.28 Square Foot at 90 Degree to Ground Worst
• Catalog Description: AREAMASTER II LED FLOOD, ENCLOSED AND GASKETED, 15K LUMEN, 5000K CCT, CLEAR GLASS, NEMA 7X7, 347-480VAC
• Category: Led Hazardous Location Lighting
• Full Technical Description: 12.94 Inch Width X 5.05 Inch Depth Size; Architectural Bronze Polyester Finish; UL 844/1598/1598A/8750, ETL (Canada and Us), CSA (Canada and Us), CSA C22.2, CE Approval; Yoke Bracket Mounting; Class I Div 2 Group A B C D, Class II Div 1 and 2 Group E F G, Class I Zone 2 Group Iic, Class III Zone 20/21 and 22, Zone 21 Group Iiic, NEMA 3R/4/4X, IP66/67 Enclosure; LED Lamp Type; 115 Watt Lamp Wattage; Copper-Free Aluminum Housing Material; 347/480 Volt AC 50/60 Hertz Lamp/Ballast Voltage; NEMA 7 X 7 (Non-Optic) Distribution/Beam Spread; 1.82 Square Foot (90 Degree to Ground-Worst Case Mounting)/1.28 Square Foot (45 Degree to Ground-Standard Mounting) EPA; AREAMASTER[TM] Generation 2 Brand; Equivalent Wattage 250 to 400 Watt HID; Current Rating 0.33 Amp at 347 Volt AC, 0.25 Amp at 480 Volt AC; Intensity 15000 Lumen; Color Temperature 5000 Kelvin (Cool White); Color Rendering Index 70; Power Factor Greater Than 0.9; Efficacy 135 Lumen Per Watt; Lens Type Clear Glass; Material Silicone Rubber (Gasket), Zinc Plated Steel (Yoke), Stainless Steel
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Floodlight Fixture
• Unspsc: 39112102
• UPC 12 Digit: 781381602587
• SKU Name: app amlgl7cg6bh
