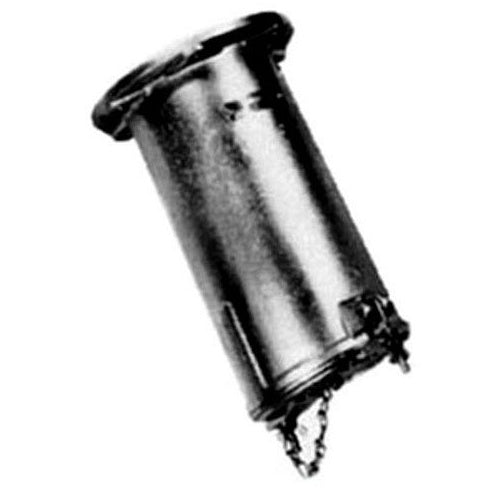

Appleton AR40044 400A Receptacle 4P 0.84

Overview

Appleton AR40044 400A Receptacle 4P 0.84

Product Specifications

• UPC: 78138129647
• Grounding Style: 1, Shell
• Door Type: Clamp Cover
• Material: Epoxy Powder Coated Copper Free Aluminum
• Grade: Shipping
• Approval: UL1682/1686/50E, CSA C22.2
• Additional Information: Wire Size 400 to 1000 MCM
• Catalog Number: AR40044
• Brand Name: Powertite[R]
• Type: Polarized
• Constructional Feature: Weatherproof
• Voltage Rating: 600 VAC at 50 to 400 Hz, 250 VDC
• Current Rating: 400 Ampere
• Number Of Poles: 4
• Number Of Wires: 4
• Catalog Description: POWERTITE GROUNDING STYLE 1 RECEPTACLE, NUMBER OF POLES: 4, NUMBER OF WIRES: 4, WIRE SIZE: 400 - 1000 MCM, AMPERAGE RATING: 400 AMP, VOLTAGE RATING: 600 VAC AT 50 - 400 HZ, 250 VDC, PHASE: 3 PH, MATERIAL: COPPERFREE (4/10 OF 1 PCT MAXIMUM
• Category: Pin & Sleeve Devices
• Full Technical Description: Positive Polarization Type; Epoxy Powder Coated Copper-Free Aluminum Material; 4 Wire(S); UL 1682, CSA C22.2 Approval; 600 Volt AC 50/400 Hertz 3-Phase, 250 Volt DC Voltage Rating; 400 Amp Current Rating; 4 Pole(S); Weatherproof; Clamp Cover; 1, Shell Grounding Style; POWERTITE[TM] Brand; Wire Size 400 MCM to 1000 MCM; Wire Recess Diameter 0.84 Inch; Cable Diameter 1.875 to 2.5 Inch; Ambient Temperature Rating -13 to 104 Deg F; Application Generator, Shipping Dock, Port; Applicable Standard Nec/Cec
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Pin and Sleeve Receptacle
• Unspsc: 39121406
• UPC 12 Digit: 781381296472
• SKU Name: app ar40044
