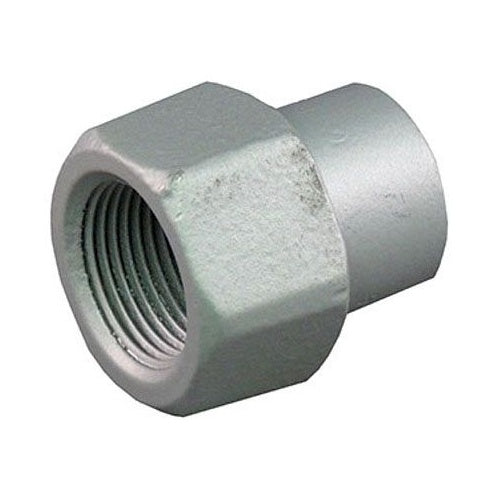

Appleton BR10075A 1X1-3/4 Aluminum Reducer Coupling

Overview

Appleton BR10075A 1X1-3/4 Aluminum Reducer Coupling

Product Specifications

• UPC: 78138175841
• Approval: UL, CSA
• Additional Information: Application Hazardous Location; Applicable Standard NEC/CEC
• Catalog Number: BR10075A
• Brand Name: Unilets[R]
• Model: BR
• Large End Trade Size: 1 Inch
• Small End Trade Size: 3/4 Inch
• Material: Epoxy Powder Coated Copper-Free Aluminum
• End Style: Belled x Belled
• Enclosure: Class I Group B C D, Class II Group E F G, Class III
• Catalog Description: UNILETS BELL REDUCER COUPLING, TRADE SIZE: LARGE HUB: 1 IN, SMALL HUB: 3/4 IN, FLEXIBILITY: RIGID AND IMC, MATERIAL: COPPERFREE (4/10 OF 1 PCT MAXIMUM) ALUMINUM, CONNECTION: FEMALE THREADED, FINISH: EPOXY POWDER COAT, STANDARD: UL 886, U
• Category: Rigid Conduit Fittings - Aluminum
• Full Technical Description: Epoxy Powder Coated Copper-Free Aluminum Material; 3/4 Inch Small End Trade Size; 1 Inch Large End Trade Size; UL 886/1203, CSA C22.2 Approval; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III Enclosure; Threaded Belled End Style; UNILETS[R] Brand; Constructional Feature Explosionproof/Dust Ignitionproof; Used on Threaded Imc/Rigid Metal Conduit; Application Hazardous Location; Applicable Standard Nec/Cec; BR Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Conduit Reducer Coupling
• Unspsc: 39121311
• UPC 12 Digit: 781381758413
• SKU Name: app br10075a

Resources

• Manufacturer Spec Sheet
