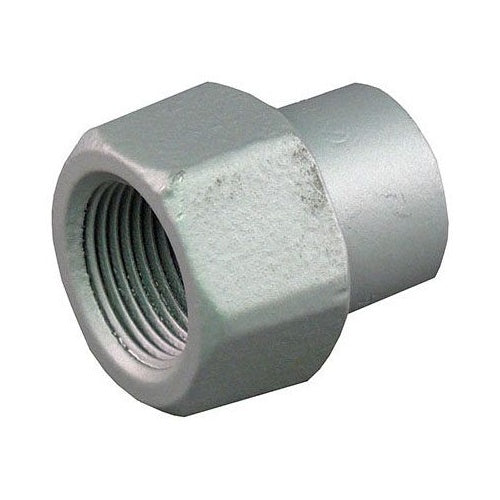

Appleton BR500400 5X4 Bell Reducer

Overview

Appleton BR500400 5X4 Bell Reducer

Product Specifications

• UPC: 78138175839
• Catalog Number: BR500400
• Brand Name: UNILETS.
• Model: BR
• Large End Trade Size: 5 INCH
• Small End Trade Size: 4 INCH
• Material: ZINC ELECTROPLATED DICHROMATE EPOXY POWDER COATED MALLEABLE IRON
• End Style: BELLED
• Enclosure: CLASS I GROUP C D, CLASS II GROUP E F G, CLASS III
• Catalog Description: EXPLOSIONPROOF CONDUIT REDUCER COUPLING, LARGE END TRADE SIZE 5 INCH, SMALL END TRADE SIZE 4 INCH, MATERIAL MALLEABLE IRON, END STYLE BELLED, ENCLOSURE CLASS I GROUP C D, CLASS II GROUP E F G, CLASS III, APPROVAL UL, CONSTRUCTIONAL FEATURE DUST-IGNITIONPROOF, EXPLOSIONPROOF
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron Material; 4 Inch Small End Trade Size; 5 Inch Large End Trade Size; UL 886/1203, CSA C22.2 Approval; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III Enclosure; Threaded Belled End Style; UNILETS[R] Brand; Constructional Feature Explosionproof/Dust Ignitionproof; Used on Threaded Imc/Rigid Metal Conduit; Application Hazardous Location; Applicable Standard Nec/Cec; BR Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Conduit Reducer Coupling
• Unspsc: 39121311
• UPC 12 Digit: 781381758390
• SKU Name: app br500400

Resources

• Manufacturer Spec Sheet
