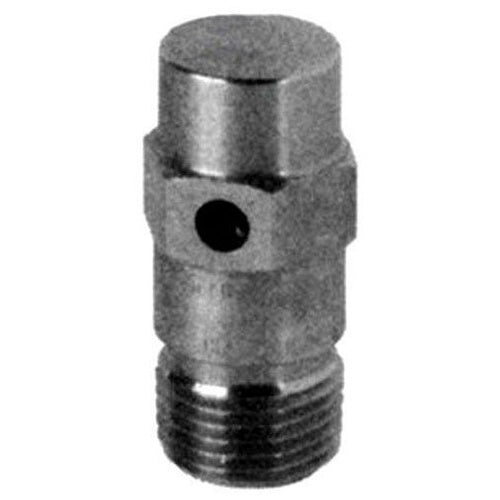

Appleton BRTB4X Steel Nema 4X Breather

Overview

Appleton BRTB4X Steel Nema 4X Breather

Product Specifications

• UPC: 78138182341
• Catalog Number: BRTB4X
• Type: Breather
• Thread Size: 1/2 Inch
• Material: Natural Stainless Steel
• Enclosure: Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 4X/7B/7C/7D/9E/9F/9G
• Approval: UL 886, CSA C22.2
• Additional Information: Constructional Feature Explosionproof, Dust Ignitionproof; Includes Outlet and Installation
• Catalog Description: BREATHER, SIZE: 1/2 IN, MATERIAL: STAINLESS STEEL, MOUNTING: TOP OF ENCLOSURE HOUSING, ENCLOSURE: NEMA 4X, FINISH: NATURAL STAINLESS STEEL, CONNECTION: TAPERED MNPT, STANDARD: UL 886 (1203), UL FILE NUMBER E10444, CSA C22.2 NO. 30, CSA 065
• Category: Steel Conduit Bodies & Covers
• Full Technical Description: Breather, Universal Type; Stainless Steel Material; CSA C22.2 Approval; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 4X Enclosure; 1/2 Inch Thread Size; Constructional Feature Explosionproof/Dust Ignitionproof; Application Hazardous Location, Continuous Ventilation; Applicable Standard Nec/Cec
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Drain/Breather
• Unspsc: 39121311
• UPC 12 Digit: 781381823418
• SKU Name: app brtb4x
