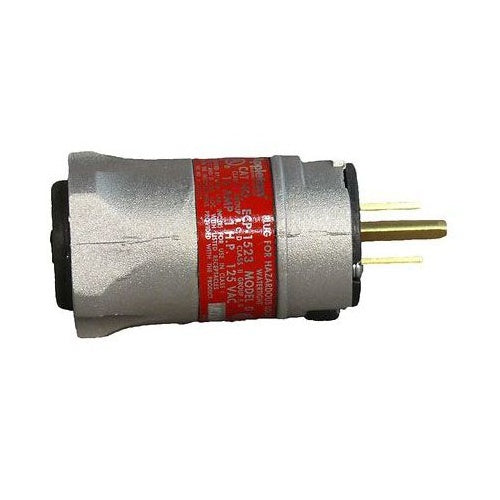

Appleton ECP-2023 2W-3P Plug

Overview

Appleton ECP-2023 2W-3P Plug

Product Specifications

• UPC: 78138124925
• Maximum Cable Outer Diameter: 0.639 Inch
• Material: Copper-Free Aluminum
• Enclosure: Class I Div 1 and 2 Group B/C/D, Class II Div 1 and 2 Group F/G, Class III, NEMA 4 when Unmated
• Additional Information: Constructional Feature Water Tight; Application Refinery, Petrochemical Plant
• Catalog Number: ECP-2023
• Brand Name: U-Line[TM]
• Model: ECP
• Voltage Rating: 125 Volt AC
• Current Rating: 20 Amp
• Number Of Poles: 3
• Number Of Wires: 2
• Minimum Cable Outer Diameter: 0.538 Inch
• Catalog Description: APPLETON U-LINE INTERCHANGER ECP STANDARD PLUG, NUMBER OF POLES: 3, NUMBER OF WIRES: 2, AMPERAGE RATING: 20 AMP, VOLTAGE RATING: 125 VAC, MATERIAL: COPPERFREE (LESS THAN 4/10 OF 1 PCT) ALUMINUM, NEMA RATING: NEMA 7BCD, 9G, PLUG CABLE DIAMETER: 0.
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Copper-Free Aluminum Material; 0.538 Inch min. Cable Outer Diameter; 0.639 Inch Max. Cable Outer Diameter; 2 Wire(S); 125 Volt AC Voltage Rating; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group F G, Class III, NEMA 4 Enclosure; 20 Amp Current Rating; 3 Pole(S); U-LINE[TM] Brand; Applicable Standard Nec/Cec; ECP Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Pin and Sleeve Plug
• Unspsc: 39121402
• UPC 12 Digit: 781381249256
• SKU Name: app ecp2023
