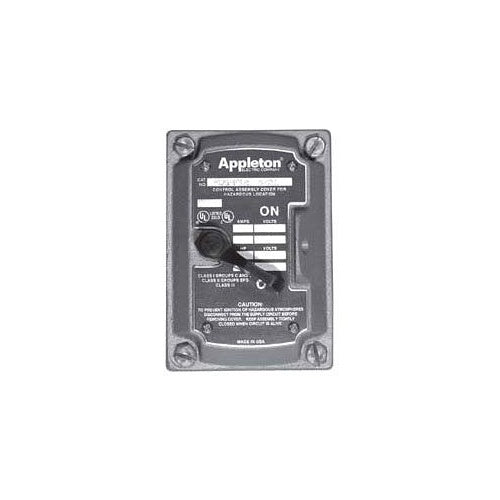

Appleton EDSF21AQ Explosion-Proof Switch

Overview

Appleton EDSF21AQ Explosion-Proof Switch

Product Specifications

• Application: For Tumbler Switches
• Brand Name: Appleton
• Special Features: Enclosures have external mounting lugs for ease of mounting; Smooth, rounded integral bushing in each hub protects conductor insulation; Enclosures furnished with internal ground screw; Smooth ground mating surfaces assure flame-tight joint between cover and mounting enclosure; Stainless steel hex head cap screws for attaching cover to mounting enclosure; Choice of front-operating or side rocker arm handle each may be locked in ON or OFF position; Each handle has close-tolerance threaded stainless steel shaft to meet explosionproof requirements; Enclosures furnished with internal ground screw; Designed to prevent arcing of enclosed switches in ignitable atmospheres during connect and disconnect operation of lighting and light power loads; With sealing cover; 1 HP at 120 VAC and 2 HP at 240 VAC; For use in classified areas where ignitable vapors, gases or highly combustible dusts are present
• Standard: UL 894, 1203, UL File Number E10523, E81751; Class I, Division 1, Groups C, D; Class I, Division 2, Group B, C, D; Class II, Division 1 And 2, Groups E, F, G; Class III
• Sub Brand: Contender
• Type: Rocker Arm Switch Assembly
• Voltage Rating: 120 to 277 VAC
• Number Of Poles: 1
• Material: Malleable Iron
• Catalog Description: CONTENDER ROCKER ARM SWITCH ASSEMBLY, VOLTAGE RATING: 120 - 277 VAC, AMPERAGE RATING: 20 AMP, NUMBER OF POLES: 1, MATERIAL: MALLEABLE IRON, STANDARD: UL 894, 1203, UL FILE NUMBER E10523, E81751, CLASS I, DIVISION 1, GROUPS C, D, CLASS I, DIVISION 2, GROUP B, C, D, CLASS II, DIVISION 1 AND 2, GROUPS E, F, G, CLASS III, FOR TUMBLER SWITCHES
• Category: Disconnect Motor Switches & Accessories
• Full Technical Description: Cover Assembly Type; Contender Front Operated Tumbler Switch Used on; Class I Div 1 Group C D, Class I Div 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 3/7CD/9EFG Enclosure; Explosionproof, Dust Ignitionproof; Switch Type 1-Pole; Voltage Rating 120/277 Volt AC; Current Rating 20 Amp; Power Rating 1 HP at 120 Volt Ac/2 HP at 240 Volt AC; Material Aluminum; Includes Internal Ground Screw, Switch; Applicable Standard Nec/Cec, UL 894/1203, UL (Canada and Us)
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Switch Accessories
• Unspsc: 39121565
• UPC 12 Digit: 781381795838
• SKU Name: app edsf21aq
