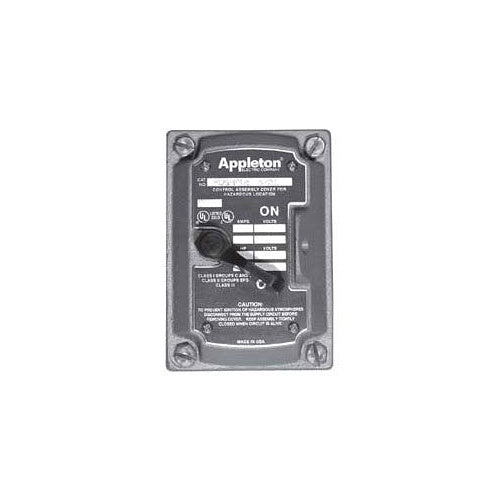

Appleton EDSF21Q Cover Chamber Switch -Sp 20A

Overview

Appleton EDSF21Q Cover Chamber Switch -Sp 20A

Product Specifications

• UPC: 78138170956
• Enclosure Material: Malleable Iron
• Enclosure: Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 7BCD/9EFG
• Approval: UL 894/1203
• Additional Information: Application Designed to Prevent Arcing of Enclosed Switches Inch Ignitable Atmospheres During Connect and Disconnect Operation of Lighting and Light Power Load
• Catalog Number: EDSF21Q
• Model: EDS
• Constructional Feature: Explosionproof, Dust Ignitionproof, Rain Tight, Wet Location
• Voltage Rating: 120 to 277 Volt AC
• Current Rating: 20 Amp
• Contact Configuration: 1-Pole
• Operator Type: Front Operated
• Box Type: 1-Gang
• Catalog Description: CONTENDER FRONT OPERATED SWITCH ASSEMBLY, VOLTAGE RATING: 120 - 277 VAC, AMPERAGE RATING: 20 AMP, NUMBER OF POLES: 1, MATERIAL: MALLEABLE IRON, STANDARD: UL 894, 1203, UL FILE NUMBER E10523, E81751, CLASS I, DIVISION 1, GROUPS C, D, CLASS
• Category: Selector Switch Complete Assemblies
• Full Technical Description: Cover Assembly Type; Contender Front Operated Tumbler Switch Used on; Class I Div 1 Group C D, Class I Div 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 3/7CD/9EFG Enclosure; Explosionproof, Dust Ignitionproof; Switch Type 1-Pole; Voltage Rating 120/277 Volt AC; Current Rating 20 Amp; Power Rating 1 HP at 120 Volt Ac/2 HP at 240 Volt AC; Material Malleable Iron; Includes Internal Ground Screw, Switch; Applicable Standard Nec/Cec, UL 894/1203, UL (Canada and Us)
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Switch Accessories
• Unspsc: 39121565
• UPC 12 Digit: 781381709569
• SKU Name: app edsf21q

Resources

• Manufacturer Spec Sheet
