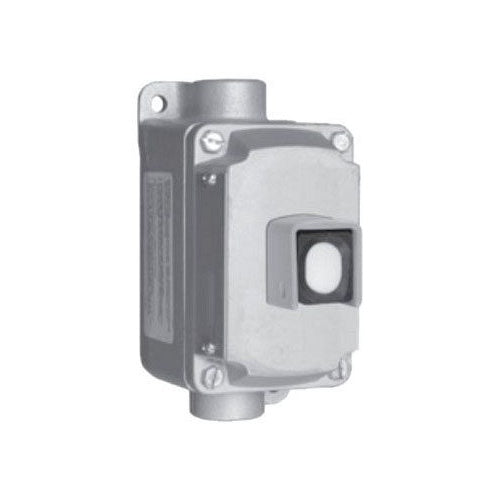

Appleton EFDB175U1 1-Gang 1-Pushbutton Unilet

Overview

Appleton EFDB175U1 1-Gang 1-Pushbutton Unilet

Product Specifications

• UPC: 78138170112
• Number Of Circuits: 1
• Contact Configuration: 1NO-1NC, Momentary, Universal
• Operator Type: Front Operated Pushbutton
• Box Type: Single Gang
• Hub Size: (2) 3/4 Inch
• Enclosure Material: Zinc Electroplated Dichromate Epoxy Powder Coated Malleable Iron
• Enclosure: Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 3/7C/7D/9E/9F/9G
• Approval: UL 508/698/1203
• Additional Information: Includes Internal Ground Screw; Application Hazardous Location
• Catalog Number: EFDB175U1
• Model: EFDB
• Type: Dead End
• Constructional Feature: Explosionproof, Dust Ignitionproof
• Voltage Rating: 600 VAC
• Current Rating: 10 Ampere
• Legend: Start/Stop
• Number Of Elements: 1
• Catalog Description: EFDB SERIES 1-GANG 1 CIRCUIT PUSH BUTTON SWITCH, ACTION: MOMENTARY, CONTACT CONFIGURATION: 1 NO/1 NC, CONTACT RATING: 10 AMP AT 600 VAC, ENCLOSURE: NEMA 3, 7CD, 9EFG, MOUNTING: SURFACE MOUNT WITH 3/4 IN DEAD-END HUB, MATERIAL: MALLEABLE
• Category: Control Station Complete Assemblies
• Full Technical Description: Dead End Type; Universal Contact Configuration; 3/4 Inch Hub Size; Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron (Body), Copper-Free Aluminum (Cover) Enclosure Material; UL 508/698/1203, UL (Canada and Us) Approval; 600 Volt AC Voltage Rating; Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 3/7CD/9EFG Enclosure; 10 Amp Current Rating; Start/Stop Legend; Explosionproof, Dust Ignitionproof; 1 Circuit(S); 1-Gang Box Type; Operation Type Momentary; Includes Internal Ground Screw; Application Chemical/Petrochemical Plant, Refinery, Process Industry; Applicable Standard Nec/Cec; EFDB Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Pushbutton Control Station
• Unspsc: 39121565
• UPC 12 Digit: 781381701129
• SKU Name: app efdb175u1
