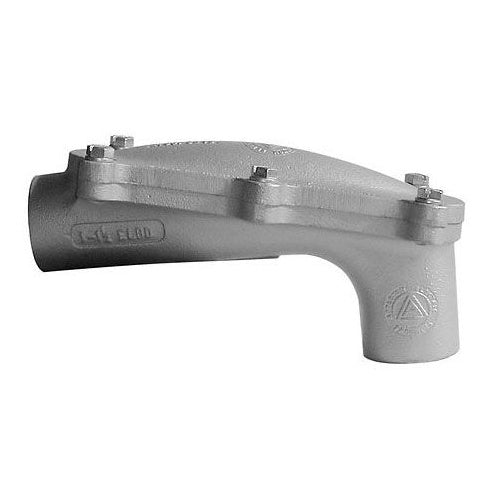

Appleton ELBD300 3" 90D Pulling Elbow

Overview

Appleton ELBD300 3" 90D Pulling Elbow

Product Specifications

• UPC: 78138129345
• Approval: UL, CSA
• Additional Information: Height 9.25 Inch; Enclosure Type Class I Div 1 and 2 Group D, Class II Div 1 and 2 Group E F G, Class III; Used On Threaded IMC/Rigid Metal Conduit; Application Hazardous Location; Applicable Standard NEC/CEC
• Catalog Number: ELBD300
• Brand Name: Unilets[R]
• Model: ELBD
• Type: Pulling
• Trade Size: 3 Inch
• Bend Angle: 90 Degree
• Material: Malleable Iron
• Finish: Zinc Electroplated Chromate Epoxy Powder Coated
• Catalog Description: ELBD SERIES 90 DEG PULLING ELBOW, MATERIAL: MALLEABLE IRON, FINISH: TRIPLE-COAT (ZINC ELECTROPLATE, CHROMATE AND EPOXY POWDER COAT), TRADE SIZE: 3 IN, FLEXIBILITY: EMT, CONNECTION: FEMALE THREADED, DIMENSIONS: 6.69 IN WIDTH X 9-1/4 IN HEIGHT, STANDARD: UL 886, UL FILE NUMBER E10444, CSA C22.2 NO. 30, CSA 065181, UL LISTED FOR CLASS 1, DIVISION 1 AND 2, GROUP D CLASS II, DIVISION 1 AND 2, GROUPS E, F, G CLASS III, FOR USE WITH METAL CONDUIT
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Malleable Iron Material; Zinc Electroplated/Chromate/Epoxy Powder Coated Finish; UL 886/1203, CSA C22.2 Approval; 3 Inch Trade Size; 90 Degree Bend Angle; UNILETS[R] Brand; Constructional Feature Explosionproof/Dust Ignitionproof, Rain Tight; Enclosure Rating Class I Div 1 and 2 Group D, Class II Div 1 and 2 Group E F G, Class III; Used on Threaded Metal Conduit; Application Hazardous Location; Applicable Standard NEC; ELBD Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Conduit Elbow
• Unspsc: 39131717
• UPC 12 Digit: 781381293457
• SKU Name: app elbd300
