Appleton ELBY100A 1" 90D CAppletoned Elbow

Overview

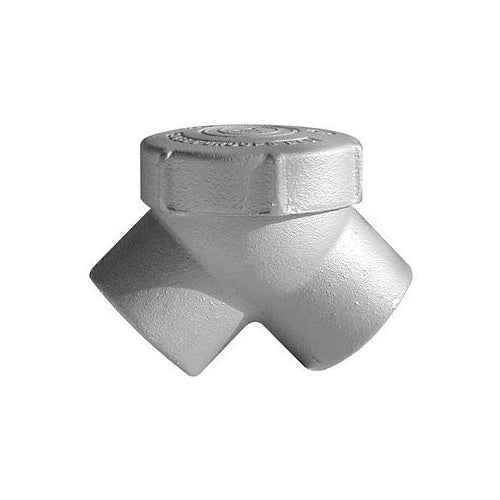

Appleton ELBY100A 1" 90D Capped Elbow

Product Specifications

• UPC: 78138162198
• Finish: Epoxy Powder Coated
• Approval: UL 886, CSA C22.2
• Additional Information: Application Serve as Pulling Fitting, Makes 90 Deg Bend in Conduit Runs
• Catalog Number: ELBY100A
• Brand Name: Unilet[R]
• Model: ELBY
• Type: Capped
• Trade Size: 1 Inch
• Bend Angle: 90 Deg
• Connection Type: Female
• Material: Aluminum
• Catalog Description: ELBY SERIES 90 DEG CAPPED ELBOW, MATERIAL: ALUMINUM, FINISH: EPOXY POWDER COAT, LENGTH: 3.19 IN, TRADE SIZE: 1 IN, FLEXIBILITY: EMT, CONNECTION: FEMALE THREADED, DIMENSION C: 2.56 IN, STANDARD: UL 886, UL FILE NUMBER E10444, CSA C22.2 NO
• Category: Rigid Conduit Fittings - Aluminum
• Full Technical Description: Capped Type; Aluminum Material; Epoxy Powder Coated Finish; Tapered Threaded Female Connection Type; UL 886/1203, CSA C22.2 Approval; 1 Inch Trade Size; 90 Degree Bend Angle; UNILETS[R] Brand; Constructional Feature Explosionproof/Dust Ignitionproof; Enclosure Rating Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III; Used on Threaded Metal Conduit; Application Hazardous Location; Applicable Standard Nec/Cec; ELBY Model
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Conduit Elbow
• Unspsc: 39131717
• UPC 12 Digit: 781381621984
• SKU Name: app elby100a
